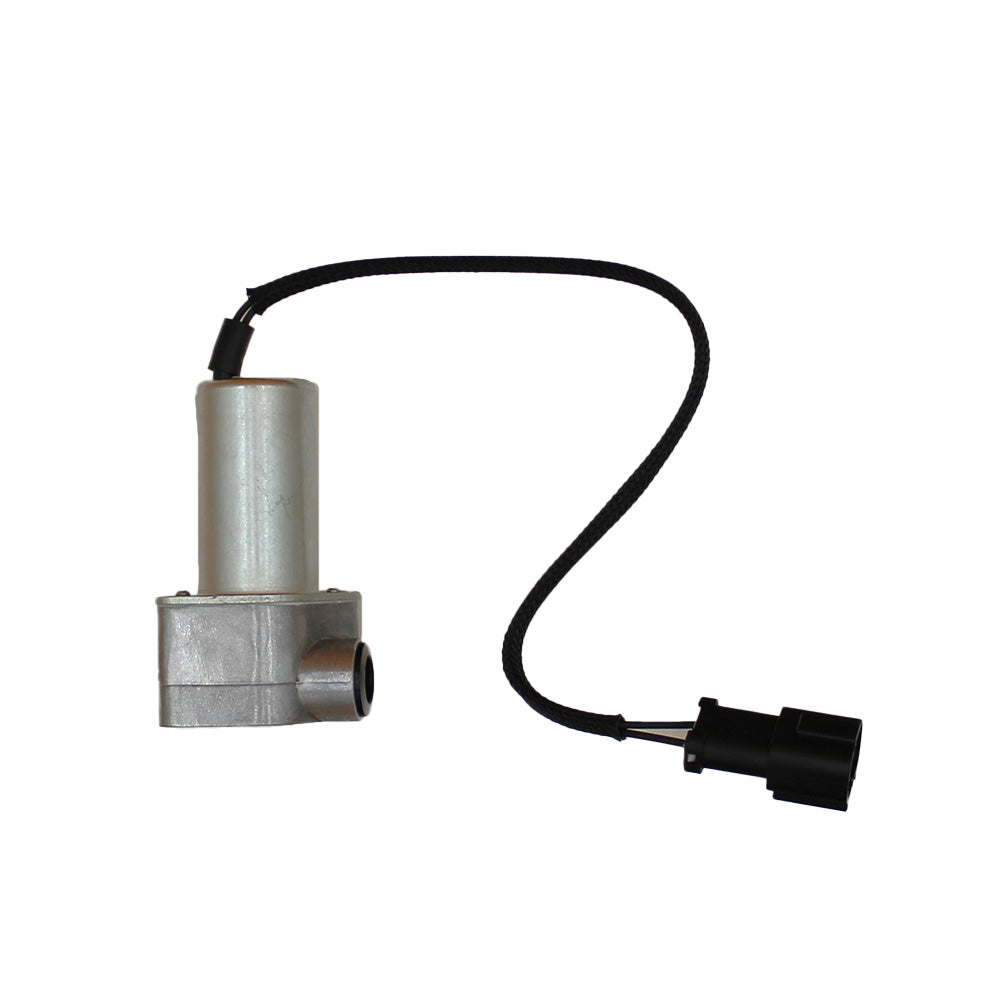

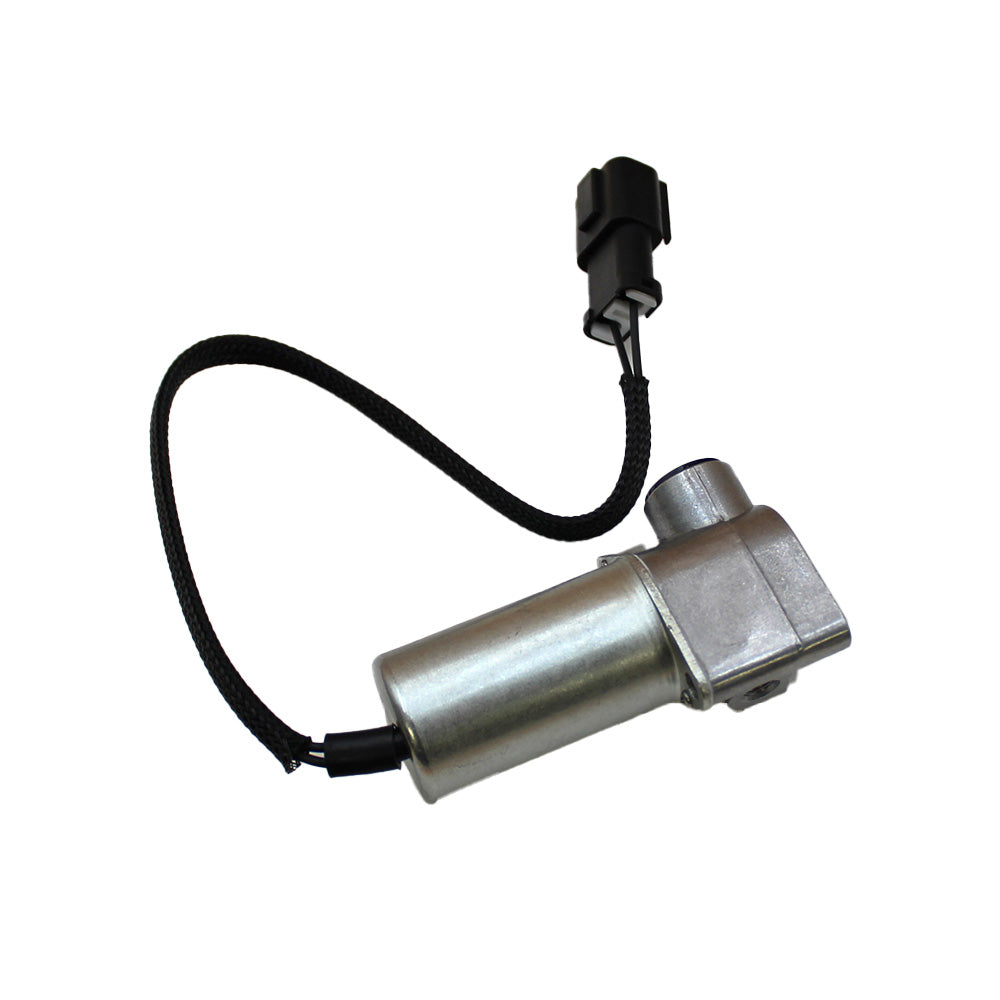

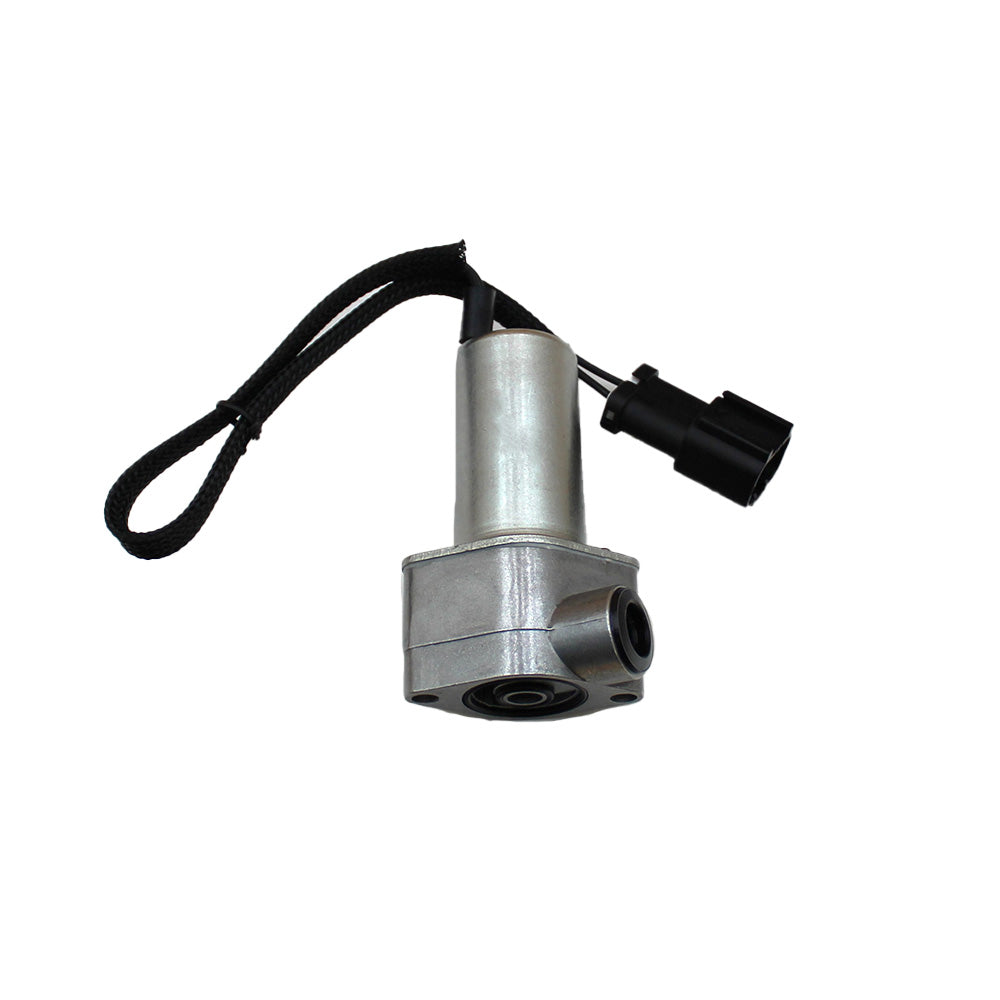

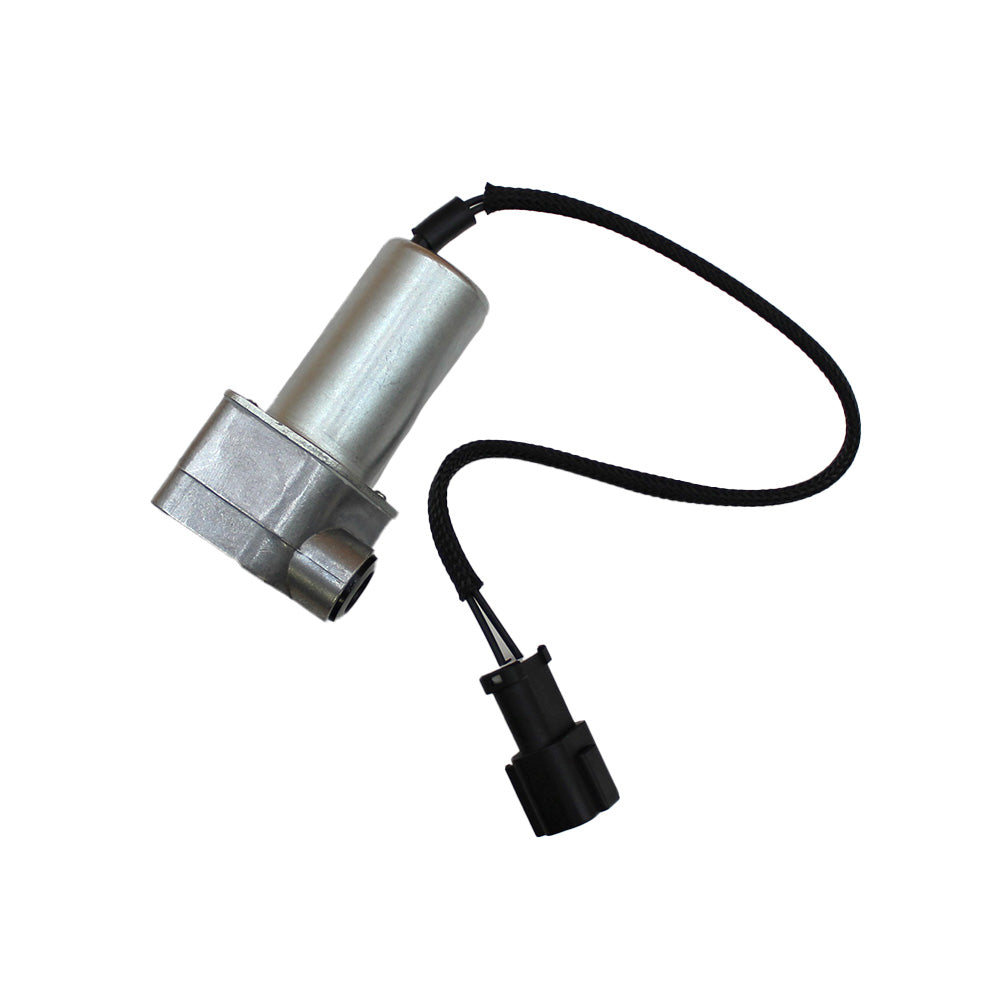

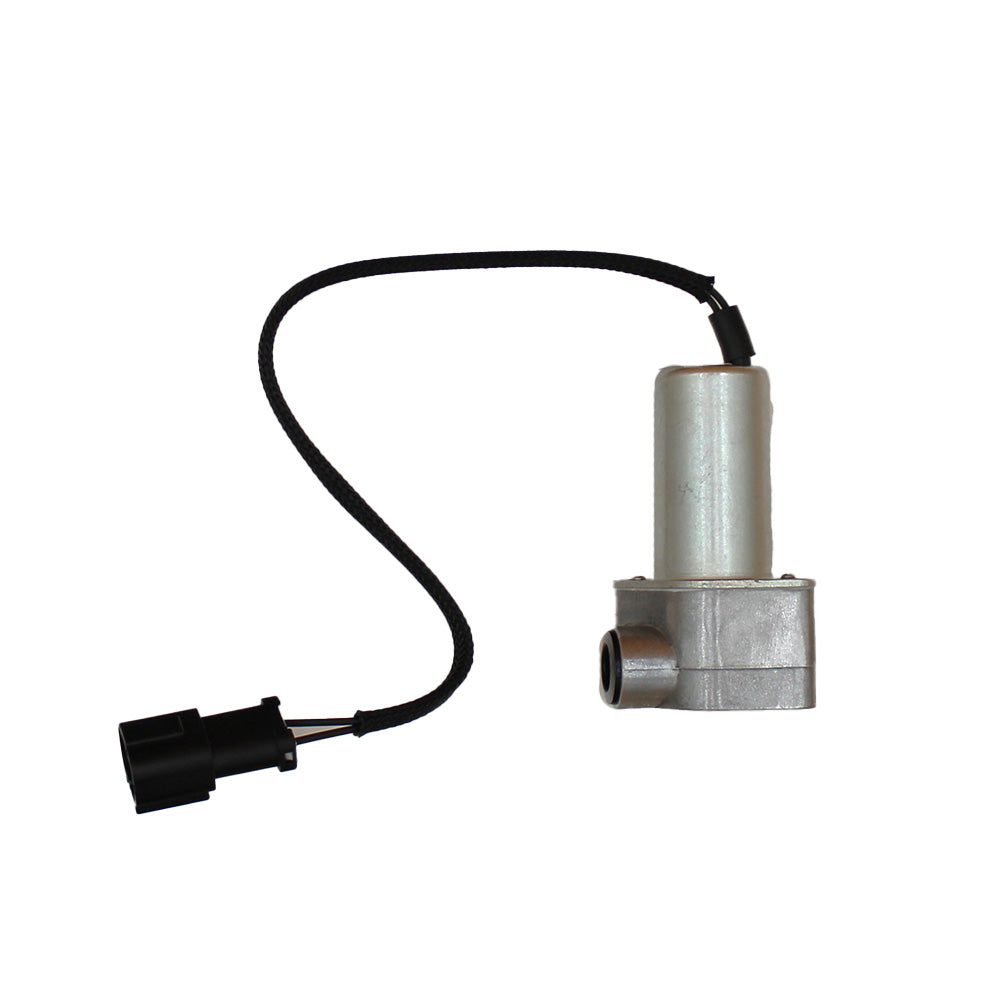

702-21-07010 SOLENOID VAL
702-21-07010 SOLENOID VAL – additional image 2702-21-07010 SOLENOID VAL – additional image 3702-21-07010 SOLENOID VAL – additional image 4702-21-07010 SOLENOID VAL – additional image 5

NC-008643 · Other Electrical Components

702-21-07010 SOLENOID VAL

CAD 229.91

In stock

SOLENOID VAL – reference 702-21-07010. Catalogue-listed applications: Komatsu, LS PC95R-2, PC100-6, PC100-6E, PC100-6S, PC100-6Z, PC110R-1, PC120-6. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-008643
Reference numbers
702-21-07010
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: SOLENOID VAL Fit Komatsu.

Configuration: EPC Solenoid Valve for Komatsu Excavators, Bulldozers, and Mobile Crushers
This EPC (Electronic Pressure Control) solenoid valve assembly mounts on the hydraulic main pump and regulates output pressure in proportion to electrical signals from the machine controller. When the solenoid receives a signal, it generates EPC output pressure to control the LS and PC valves, modulating hydraulic pump displacement for precise flow management. Compatible with a wide range of Komatsu excavators, bulldozers, and mobile crushers powered by the 6D102 engine family.
Specifications
Part Number: 702-21-07010 / 7022107010
Type: EPC (Electronic Pressure Control) Solenoid Valve Assembly
Voltage: 24V
Weight: 0.57 kg (1.03 lbs) approx.
Compatible Models
Komatsu Excavators (PC-6 Series): PC95R-2, PC100-6, PC100-6E, PC100-6S, PC100-6Z, PC110R-1, PC120-6, PC120-6E, PC120-6E0-T2, PC120-6H, PC120-6J, PC120-6S, PC120-6Z, PC120-6Z-A1, PC120LC-6, PC120LC-6E0, PC128US-1, PC128US-2, PC128UU-1, PC128UU-2, PC180NLC-7-E, PC200-6, PC200EL-6K, PC220-6, PC240-6, PC240-8K, PC290-8K, PC300LC-6, PC340NLC-7K
Komatsu Bulldozers: D155A-3, D155A-5, D155X-3
Komatsu Mobile Crushers and Recyclers: BR100G-2, BR200S-1, BR300S-1, BR380JG-1, BR380JG-1-W1, BZ270-1
Replaces Part Number(s):
702-21-07010, 7022107010
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 702-21-07010

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Komatsu PC95R-2
  • Komatsu PC100-6
  • Komatsu PC100-6E
  • Komatsu PC100-6S
  • Komatsu PC100-6Z
  • Komatsu PC110R-1
  • Komatsu PC120-6
  • Komatsu PC120-6E
  • Komatsu PC120-6E0-T2
  • Komatsu PC120-6H
  • Komatsu PC120-6J
  • Komatsu PC120-6S
  • Komatsu PC120-6Z
  • Komatsu PC120-6Z-A1
  • Komatsu PC120LC-6
  • Komatsu PC120LC-6E0
  • Komatsu PC128US-1
  • Komatsu PC128US-2
  • Komatsu PC128UU-1
  • Komatsu PC128UU-2
  • Komatsu PC180NLC-7-E
  • Komatsu PC200-6
  • Komatsu PC200EL-6K
  • Komatsu PC220-6
  • Komatsu PC240-6
  • Komatsu PC240-8K
  • Komatsu PC290-8K
  • Komatsu PC300LC-6
  • Komatsu PC340NLC-7K
  • Komatsu D155A-3
  • Komatsu D155A-5
  • Komatsu D155X-3
  • Komatsu BR100G-2
  • Komatsu BR200S-1
  • Komatsu BR300S-1
  • Komatsu BR380JG-1
  • Komatsu BR380JG-1-W1
  • Komatsu BZ270-1
Application notes
  • One New Aftermarket Replacement EPC Solenoid Valve for Komatsu Excavators, Bulldozers, and Mobile Crushers
  • This EPC (Electronic Pressure Control) solenoid valve assembly mounts on the hydraulic main pump and regulates output pressure in proportion to electrical signals from the machine controller. When the solenoid receives a signal, it generates EPC output pressure to control the LS and PC valves, modulating hydraulic pump displacement for precise flow management. Compatible with a wide range of Komatsu excavators, bulldozers, and mobile crushers powered by the 6D102 engine family.
  • New aftermarket replacement part - not remanufactured, not used.
