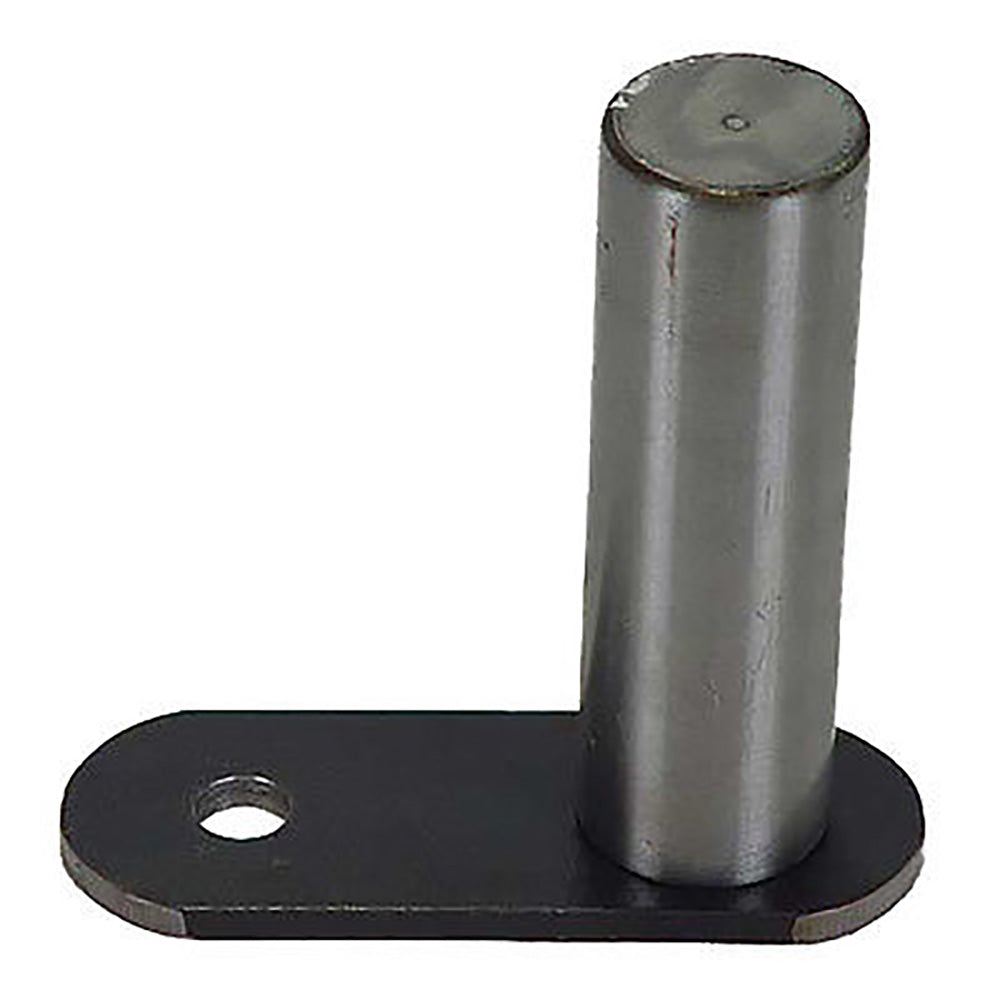

109-0377 Pin End – Fits Caterpillar

NC-008245 · Hardware

109-0377 Pin End – Fits Caterpillar

CAD 160.26

Availability to confirm

Pin End – reference 109-0377. Catalogue-listed applications: Caterpillar D6M, D6M XL, D6M LGP, D6N, D6N XL, D6N LGP, D6N OEM. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-008245
Reference numbers
109-0377, BAN90-0067
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pin End Fits CAT D6M XL, D6M LGP, D6N XL, D6N LGP.

Configuration: Pin End Fits Caterpillar (Fits CAT) D6M and D6N Track-Type Tractors
This hard chrome plated pin end is a precision-fit replacement for the dozer linkage system on Fits Caterpillar (Fits CAT) D6M and D6N series track-type tractors. Featuring a puller hole for easier removal during service and an internal grease passage for lubrication through the pin, it is engineered for demanding dozer applications where durability and precise fit are critical.
Specifications
Outside Diameter: 59.95mm (approx. 2.36 in.)
Length: 7.13 in.
Plating: Hard Chrome Plated
Removal Aid: Puller Hole
Lubrication: Greased Through Pin (internal groove)
Compatible Models
Fits Caterpillar (Fits CAT) D6M Series: D6M, D6M XL, D6M LGP
Fits Caterpillar (Fits CAT) D6N Series: D6N, D6N XL, D6N LGP, D6N OEM
Fits Caterpillar (Fits CAT) D5R Series (per catalog data - verify fitment before ordering): D5R LGP, D5R XL, D5R2
Fits Caterpillar (Fits CAT) D5 Series (per catalog data - verify fitment before ordering): D5
Replaces Part Number(s):
109-0377, BAN90-0067
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 109-0377, BAN90-0067

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar D6M
  • Caterpillar D6M XL
  • Caterpillar D6M LGP
  • Caterpillar D6N
  • Caterpillar D6N XL
  • Caterpillar D6N LGP
  • Caterpillar D6N OEM
  • Caterpillar D5R LGP
  • Caterpillar D5R XL
  • Caterpillar D5R2
  • Caterpillar D5
Application notes
  • One New Aftermarket Replacement Pin End Fits Caterpillar (Fits CAT) D6M and D6N Track-Type Tractors
  • Fits Caterpillar (Fits CAT) D5R Series (per catalog data - verify fitment before ordering): D5R LGP, D5R XL, D5R2
  • Fits Caterpillar (Fits CAT) D5 Series (per catalog data - verify fitment before ordering): D5
  • New aftermarket replacement part - not remanufactured, not used.
