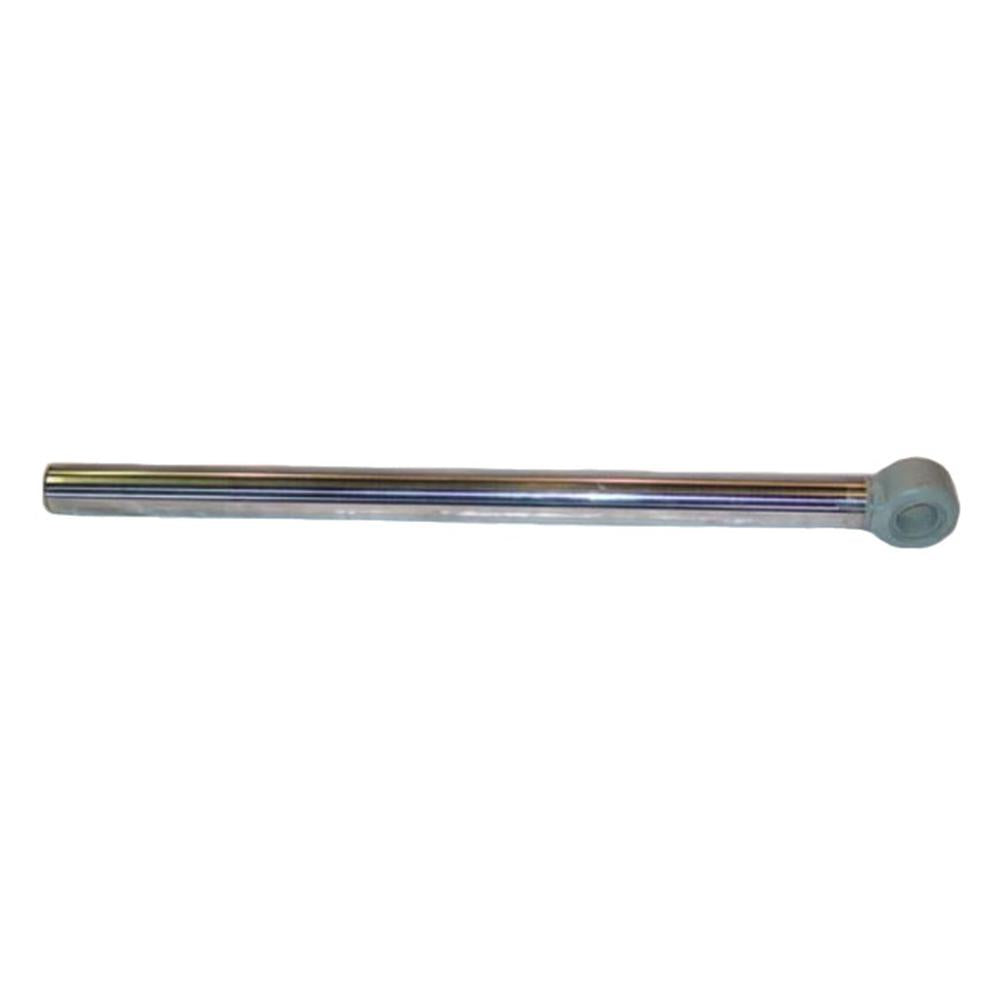

196164A1 Rod, 2 1/2" use with 1 1/4" Bolt

NC-008174 · Hardware

196164A1 Rod, 2 1/2" use with 1 1/4" Bolt

CAD 1138.79

In stock

Rod, 2 1/2" use with 1 1/4" Bolt – reference 196164A1. Catalogue-listed applications: Case, Case / International Harvester, International Harvester 580K, 580SK (580 Super K), 580L, 580 Super L, 580M, 580 Super M. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-008174
Reference numbers
196164A1, 196164A1-A
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Rod, 2 1/2" use with 1 1/4" Bolt Fits Case 580K, 580SK.

Configuration: Bucket Cylinder Rod Fits Case Backhoe Loaders
This aftermarket replacement hydraulic bucket cylinder rod Fits Case (formerly Fits Case/International Harvester) backhoe loaders. The rod is the primary reciprocating component inside the backhoe bucket cylinder, converting hydraulic pressure into the curling and dumping force of the bucket. This assembly includes the 2-1/2" diameter rod, a 1-1/4" x 3" piston bolt, nut, and rod eye bushing -- everything needed for a complete cylinder rod replacement.
Specifications
Rod Diameter: 2-1/2"
Piston Bolt: 1-1/4" x 3" (included)
Includes: Piston bolt, nut, and rod eye bushing
All Serial Numbers
Compatible Models
Fits Case Backhoe Loaders: 580K, 580SK (580 Super K), 580L, 580 Super L, 580M, 580 Super M
Replaces Part Number(s):
196164A1, 196164A1-A
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 196164A1, 196164A1-A

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 580K
  • Case 580SK (580 Super K)
  • Case 580L
  • Case 580 Super L
  • Case 580M
  • Case 580 Super M
Application notes
  • One New Aftermarket Replacement Bucket Cylinder Rod Fits Case Backhoe Loaders
  • This aftermarket replacement hydraulic bucket cylinder rod Fits Case (formerly Fits Case/International Harvester) backhoe loaders. The rod is the primary reciprocating component inside the backhoe bucket cylinder, converting hydraulic pressure into the curling and dumping force of the bucket. This assembly includes the 2-1/2" diameter rod, a 1-1/4" x 3" piston bolt, nut, and rod eye bushing -- everything needed for a complete cylinder rod replacement.
  • All Serial Numbers
  • New aftermarket replacement part - not remanufactured, not used.
