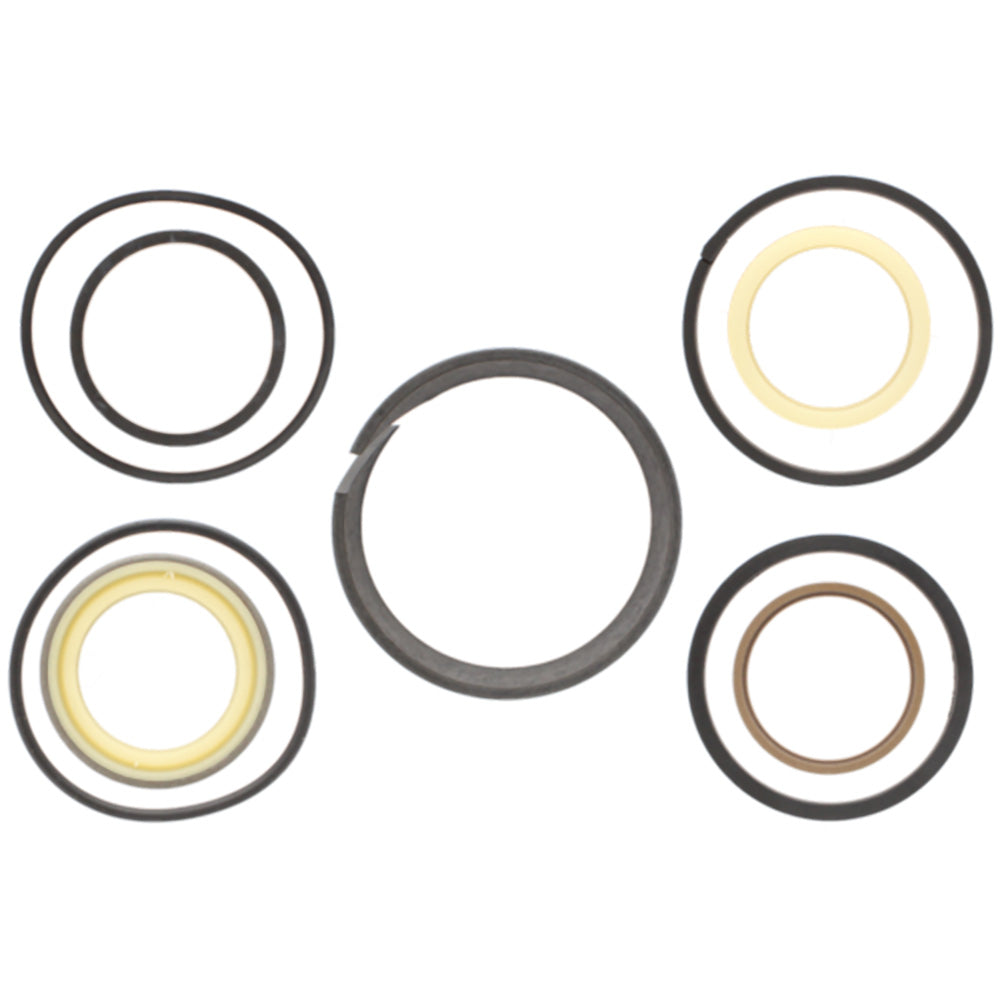

7X2764 Tilt Cylinder Seal Repair Kit – Fits Caterpillar

NC-007760 · Cylinders

7X2764 Tilt Cylinder Seal Repair Kit – Fits Caterpillar

CAD 59.78

Availability to confirm

Tilt Cylinder Seal Repair Kit – reference 7X2764. Catalogue-listed applications: Caterpillar 931B (Tilt Cylinders 1U3165, 4T0963), 931C (Tilt Cylinder 4T0963), 934B (Tilt Cylinder 4T0963), 935B, 935C (Tilt Cylinder 4T0963), 904 (Tilt Cylinder 4T8581), 910 (Tilt and Tilt Extended Dump Cylinder 1U3164). View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-007760
Reference numbers
7X2764, 7X2764-A
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: New Tilt Cylinder Seal Repair Kit Fits Caterpillar 931B 910 904 7X2764.

Configuration: Tilt Cylinder Seal Kit Fits Caterpillar (Fits CAT) Crawler Loaders, Wheel Loaders, and Integrated Tool Carriers
This aftermarket replacement tilt cylinder seal kit (7X2764) restores the hydraulic tilt cylinder on Fits Caterpillar crawler loaders, wheel loaders, and integrated tool carriers. The kit seals a 1-3/4" rod and 3-1/4" bore cylinder and includes wiper, buffer, U-cup, and piston seals to fully rebuild the tilt and tilt extended dump cylinders.
Specifications
Rod Size: 1-3/4 in
Bore Size: 3-1/4 in
Includes: Wiper seal, buffer seal, U-cup seal, and piston seals
Compatible Models
Fits Caterpillar Crawler Loaders: 931B (Tilt Cylinders 1U3165, 4T0963), 931C (Tilt Cylinder 4T0963), 934B (Tilt Cylinder 4T0963), 935B, 935C (Tilt Cylinder 4T0963)
Fits Caterpillar Wheel Loaders: 904 (Tilt Cylinder 4T8581), 910 (Tilt and Tilt Extended Dump Cylinder 1U3164)
Fits Caterpillar Integrated Tool Carriers: IT12 (Tilt Cylinders 4T8581, 9T5489)
Replaces Part Number(s):
7X2764, 7X2764-A
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 7X2764, 7X2764-A

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar 931B (Tilt Cylinders 1U3165, 4T0963)
  • Caterpillar 931C (Tilt Cylinder 4T0963)
  • Caterpillar 934B (Tilt Cylinder 4T0963)
  • Caterpillar 935B
  • Caterpillar 935C (Tilt Cylinder 4T0963)
  • Caterpillar 904 (Tilt Cylinder 4T8581)
  • Caterpillar 910 (Tilt and Tilt Extended Dump Cylinder 1U3164)
  • Caterpillar IT12 (Tilt Cylinders 4T8581, 9T5489)
Application notes
  • One New Aftermarket Replacement Tilt Cylinder Seal Kit Fits Caterpillar (Fits CAT) Crawler Loaders, Wheel Loaders, and Integrated Tool Carriers
  • This aftermarket replacement tilt cylinder seal kit (7X2764) restores the hydraulic tilt cylinder on Fits Caterpillar crawler loaders, wheel loaders, and integrated tool carriers. The kit seals a 1-3/4" rod and 3-1/4" bore cylinder and includes wiper, buffer, U-cup, and piston seals to fully rebuild the tilt and tilt extended dump cylinders.
  • New aftermarket replacement part - not remanufactured, not used.
