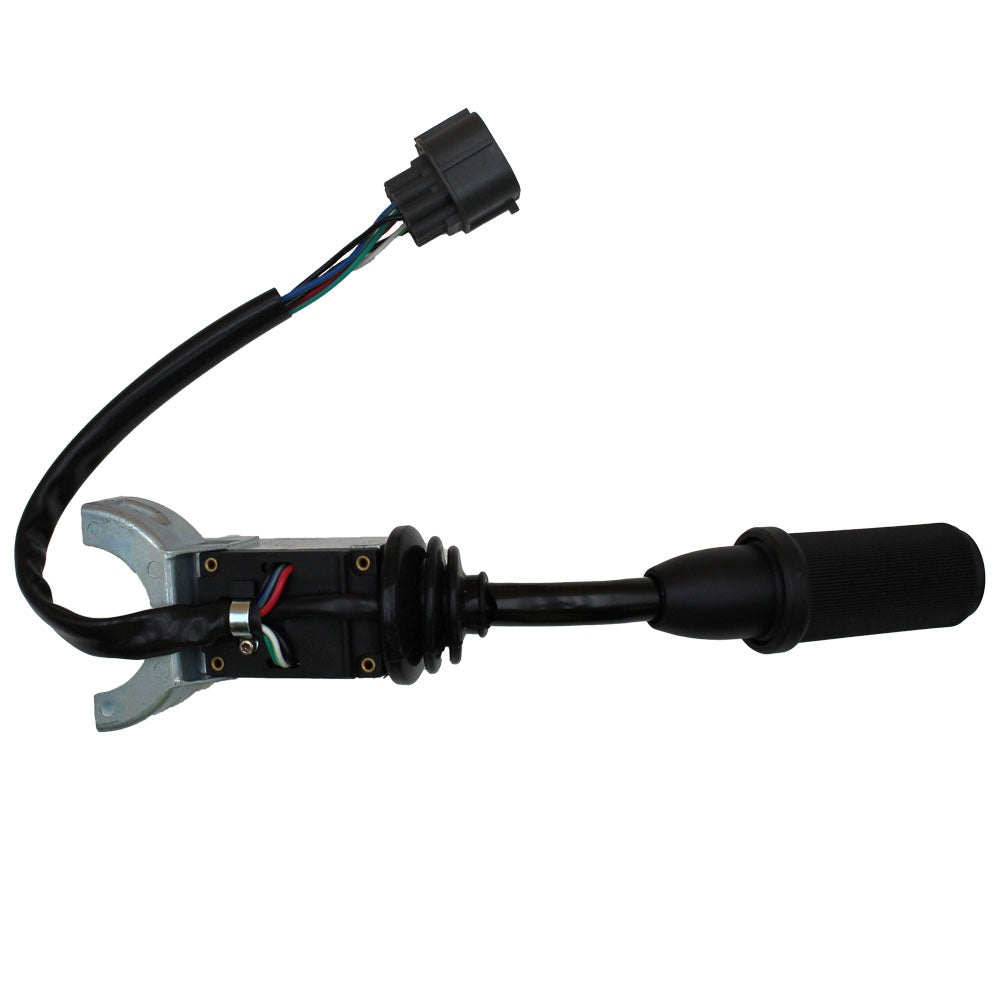

701/80296 Forward/Reverse Switch 70180296 – Fits JCB

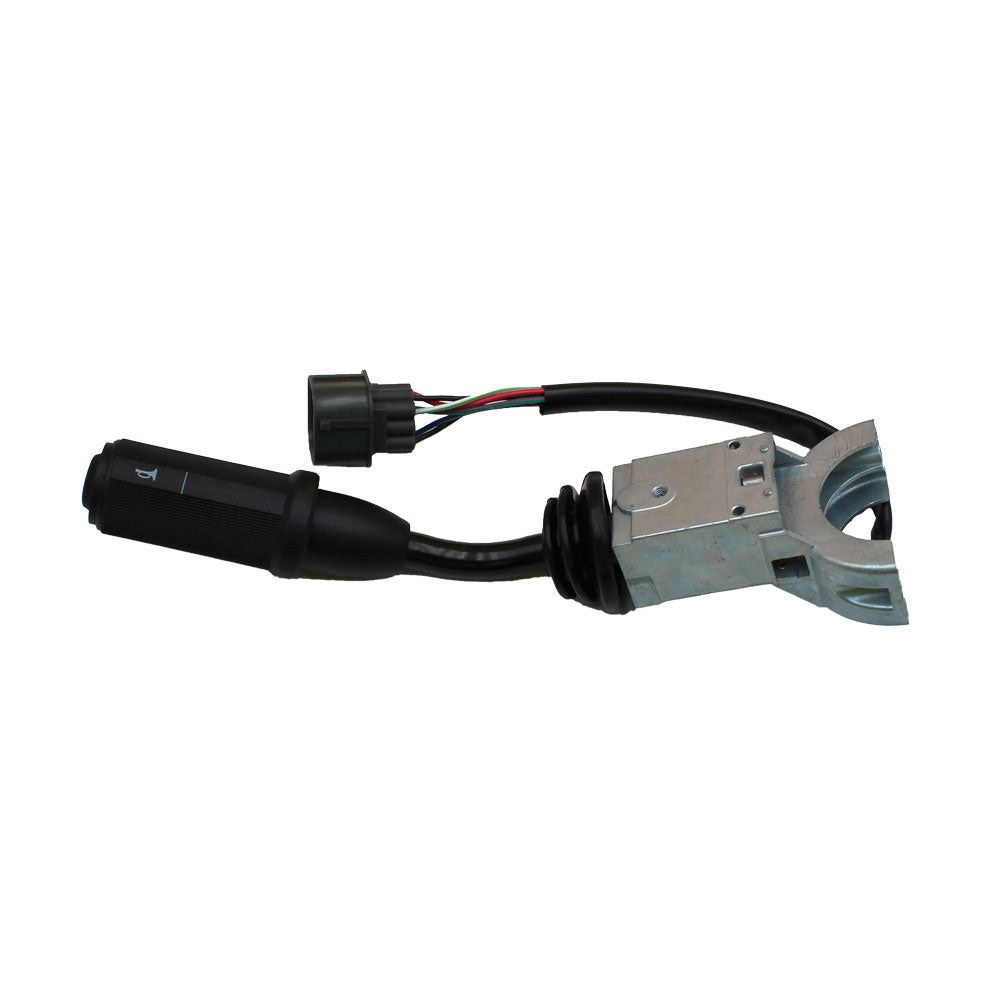

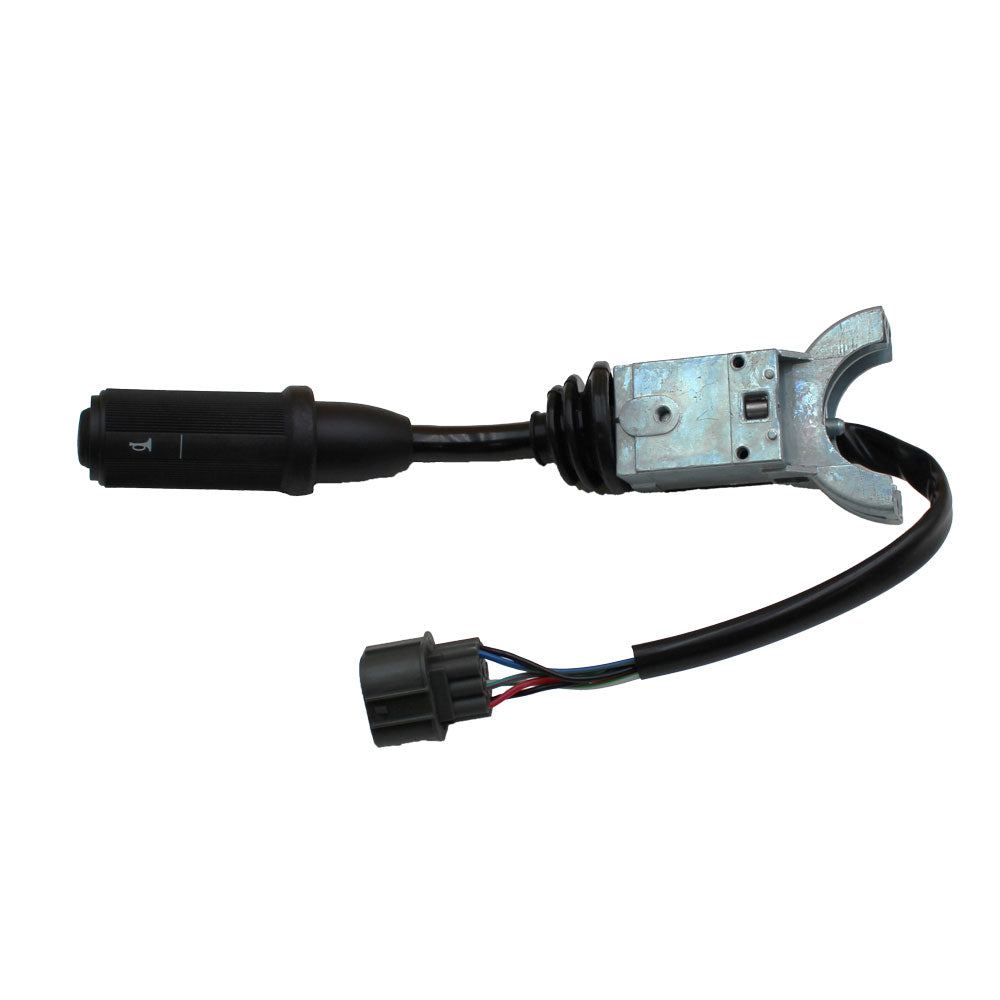

701/80296 Forward/Reverse Switch 70180296 – Fits JCB – additional image 2701/80296 Forward/Reverse Switch 70180296 – Fits JCB – additional image 3701/80296 Forward/Reverse Switch 70180296 – Fits JCB – additional image 4

NC-006205 · Switches

701/80296 Forward/Reverse Switch 70180296 – Fits JCB

CAD 500.58

Availability to confirm

Forward/Reverse Switch 70180296 – reference 701/80296. Catalogue-listed applications: JCB. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-006205
Reference numbers
701/80296, 701-80296
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Forward/Reverse Switch 70180296 fits Several Fits JCB Models.

Configuration: Left Hand Forward/Reverse Column Switch for JCB Backhoe Loader
This left hand forward/reverse column switch (also called a shuttle column switch or combination switch) mounts on the steering column of JCB backhoe loaders and controls directional travel -- Forward, Reverse, Neutral, and Neutral Lock. It features an integrated horn button and connects via a single wire harness connector. Designed for JCB machines equipped with Manual or SynchroShuttle transmission.
Specifications
Total Length: 10.0 in.
Total Width: 2.7 in.
Total Height: 4.4 in.
Built-In Diameter: 1.8 in.
Number of Mounting Holes: 2
Mounting Hole Diameter: 0.21 in.
Shortest Center Distance Between Mounting Holes: 2.4 in.
Connection Type: Wire with Connector
Number of Connections: 1
Number of Levers: 1
Control Functions: Neutral, Neutral Lock, Forward, Reverse
Additional Features: Horn
Hand: Left Hand (LH)
Compatible Models
JCB Backhoe Loaders: 1400B, 1550B, 1600B, 1700B, 2CX, 2CX-AIRMASTER, 2CX-SM, 2CXL, 2CXS, 2CXSL, 2CX Utility, 3C, 3CX, 3CXS-PC, 3D, 3DX, 4C, 4CN, 4CN444 Super, 4CX, 4CX444 Super, 4D, 4DX, 214, 215, 216, 217
JCB Loadall Telescopic Handlers: 525-60, 526-56, 527-58, 535-95, 536-70, 540-170, 540-200, 541-70, 550-80, 550-170, 560-80
JCB Telemaster: TM320
Replaces Part Number(s):
701/80296, 701-80296, 70180296
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 701/80296, 701-80296
Application notes
  • One New Aftermarket Replacement Left Hand Forward/Reverse Column Switch for JCB Backhoe Loader
  • This left hand forward/reverse column switch (also called a shuttle column switch or combination switch) mounts on the steering column of JCB backhoe loaders and controls directional travel -- Forward, Reverse, Neutral, and Neutral Lock. It features an integrated horn button and connects via a single wire harness connector. Designed for JCB machines equipped with Manual or SynchroShuttle transmission.
  • Connection Type: Wire with Connector
  • New aftermarket replacement part - not remanufactured, not used.
