TH108941 Pin Bucket to dipper arm

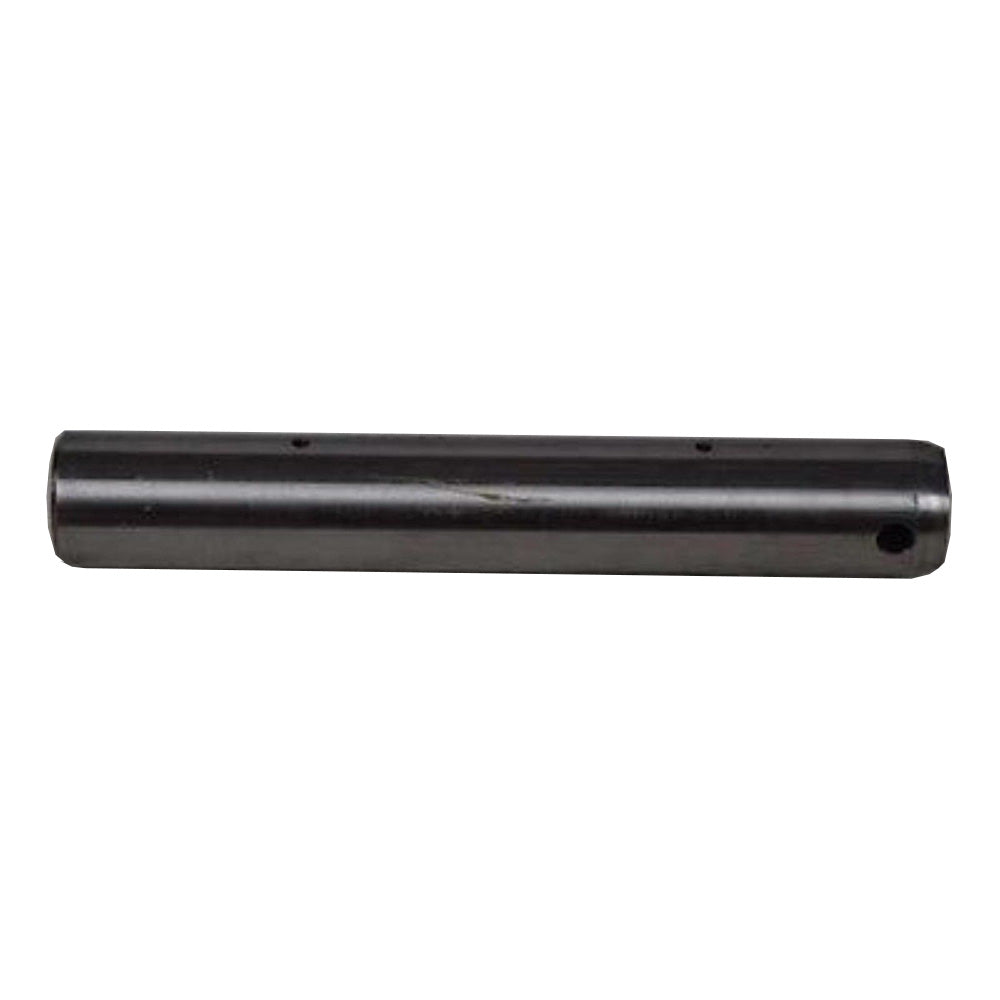

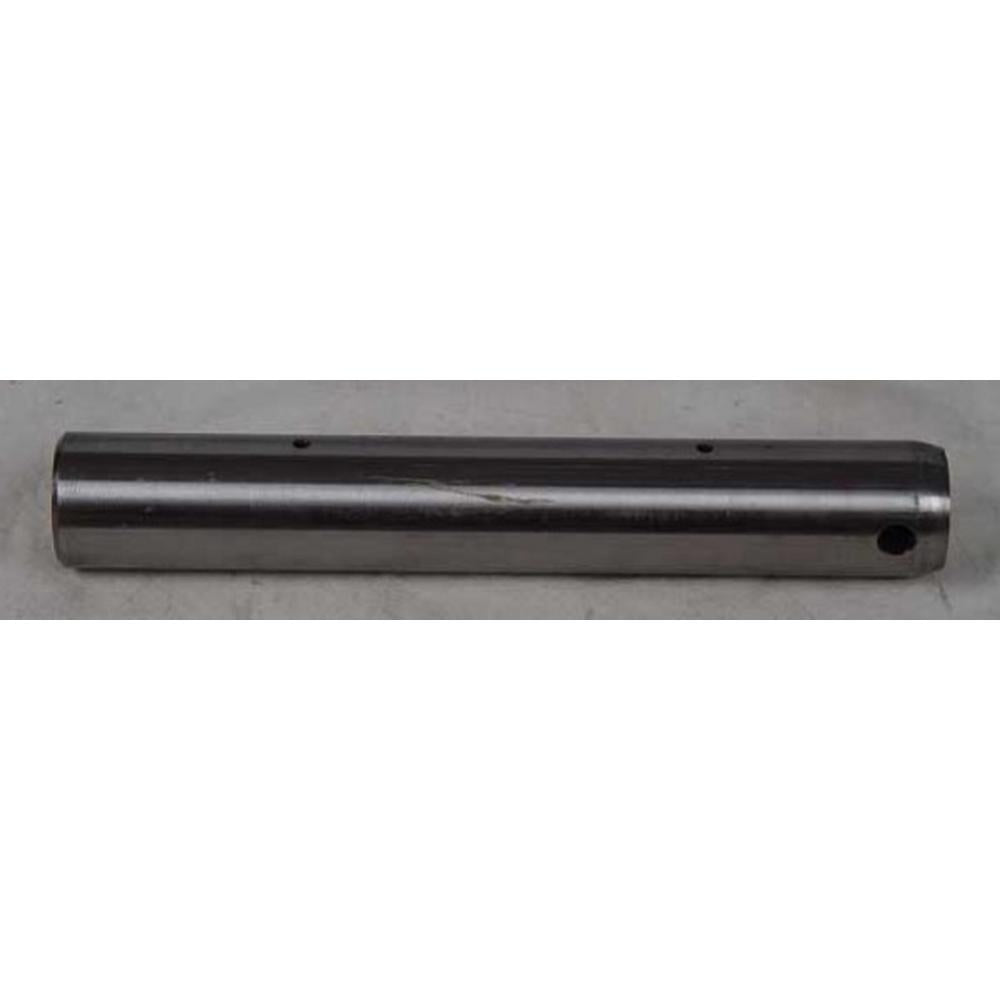

TH108941 Pin Bucket to dipper arm – additional image 2TH108941 Pin Bucket to dipper arm – additional image 3

NC-006146 · Hardware

TH108941 Pin Bucket to dipper arm

CAD 385.33

Availability to confirm

Pin Bucket to dipper arm – reference TH108941. Catalogue-listed applications: John Deere, Hitachi, Same 110, 120, 490D, 490E, EX100, EX120. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-006146
Reference numbers
TH108941, 3037080, 3089243
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pin Bucket to dipper arm Fits John Deere 490D, 490E, 110, 120.

Configuration: Bucket to Dipper Arm Pin Fits John Deere (Fits JD) Excavators
This bucket-to-dipper arm pin connects the excavator bucket directly to the dipper arm (stick), securing the pivot joint that allows the bucket to curl and dig. It is a high-wear structural pin that should be inspected regularly and replaced when worn to prevent slop in the linkage and loss of digging precision. Fits John Deere (Fits JD) 490D, 490E, 110, and 120 crawler excavators, and also listed for Hitachi EX100 and EX120 excavators per manufacturer cross-reference data.
Specifications
Length: 16.5 in.
Diameter: 65 mm
Position: Bucket to Dipper Arm
Compatible Models
Fits John Deere Excavators: 110, 120, 490D, 490E
Hitachi Excavators: EX100, EX120
Replaces Part Number(s):
TH108941, 3037080, 3089243
Aftermarket Interchange Numbers
AT318059, 3084540
NOTE: The bucket-to-H-Link pin for these same models is a separate part. Do not confuse with the H-Link pin or the link-to-dipper pin -- verify your specific linkage position before ordering.
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: TH108941, 3037080, 3089243

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 110
  • John Deere 120
  • John Deere 490D
  • John Deere 490E
  • John Deere EX100
  • John Deere EX120
Application notes
  • One New Aftermarket Replacement Bucket to Dipper Arm Pin Fits John Deere (Fits JD) Excavators
  • Aftermarket Interchange Numbers
  • NOTE: The bucket-to-H-Link pin for these same models is a separate part. Do not confuse with the H-Link pin or the link-to-dipper pin -- verify your specific linkage position before ordering.
  • New aftermarket replacement part - not remanufactured, not used.
