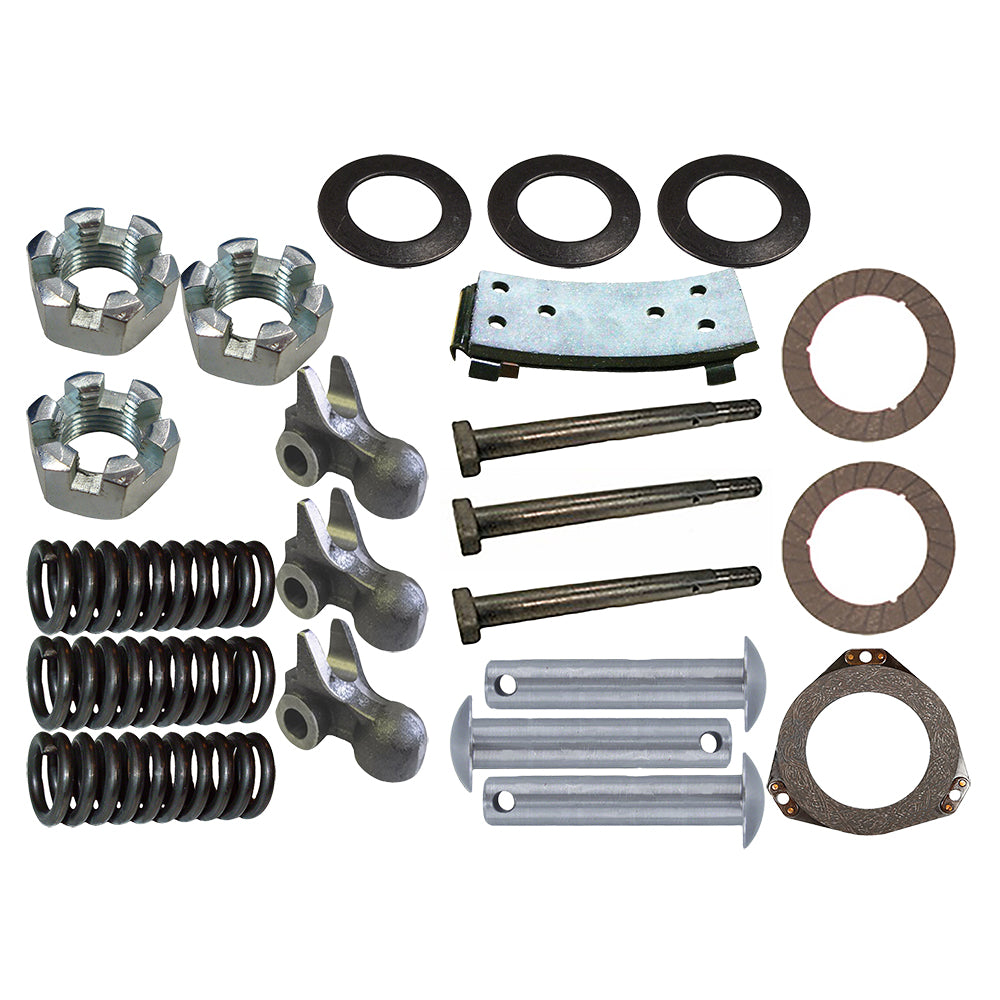

AF4748R Complete Overhaul T-Bolt & Clutch Kit
AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 2AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 3AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 4AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 5AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 6AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 7AF4748R Complete Overhaul T-Bolt & Clutch Kit – additional image 8

NC-118157 · Kits, Tools & Shop Items

AF4748R Complete Overhaul T-Bolt & Clutch Kit

CAD 789.77

Availability to confirm

Complete Overhaul T-Bolt & Clutch Kit – reference AF4748R. Catalogue-listed applications: John Deere, Long 60, 620, 630. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-118157
Reference numbers
AF4748R, AD2850R, D2789R, A4354R, C74R, D355R, AA5082R, AA6129, R90215, C614R, AB4748R, RE29790, A352R, JDS1626, 14H862, R20228
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Complete Overhaul T-Bolt & Clutch Kit Fits John Deere Replaces A352R.

Configuration: Complete Overhaul T-Bolt & Clutch Kit

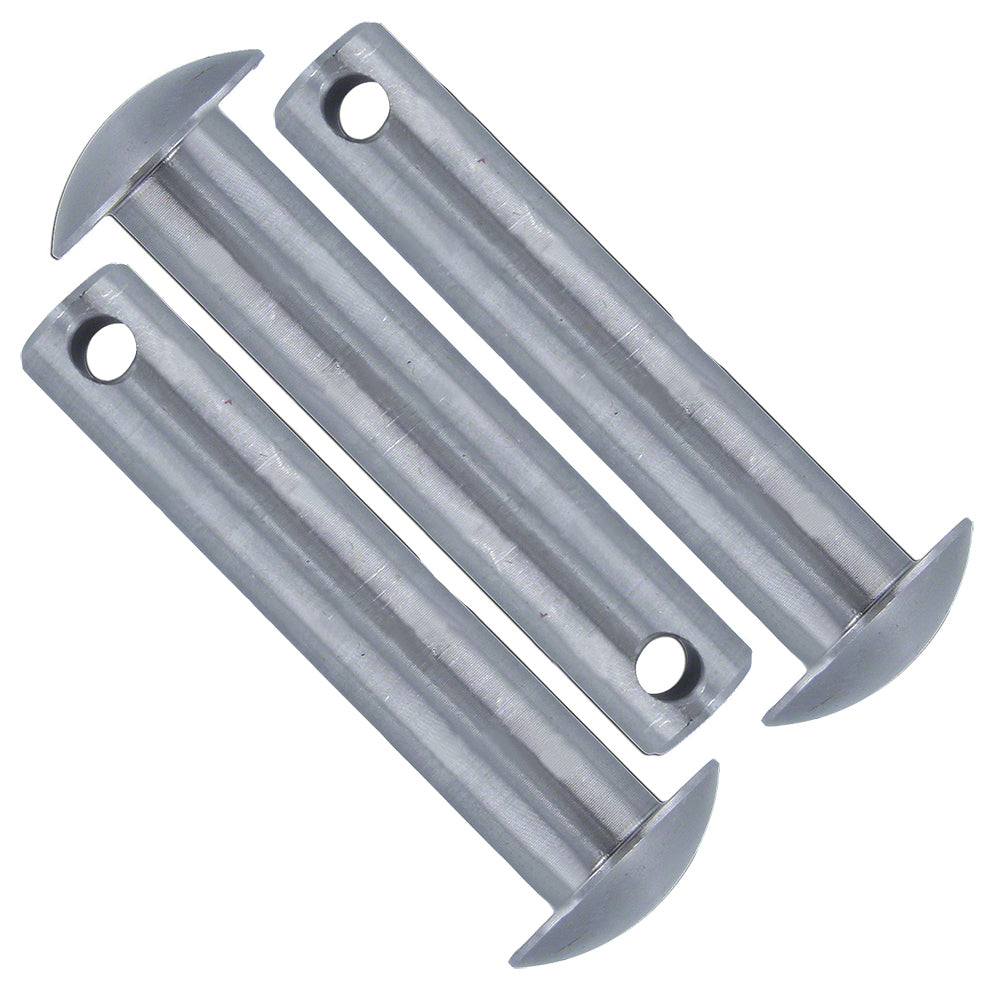

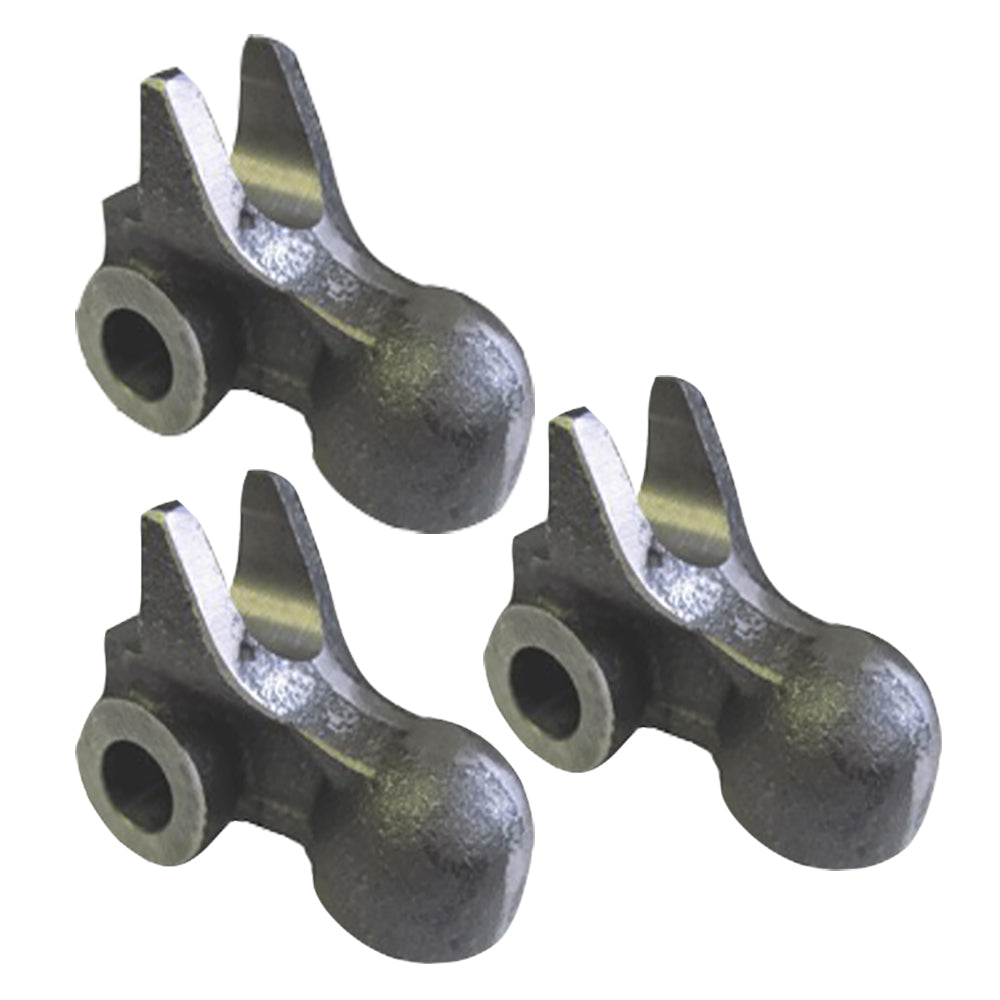

Tech Info: -(3) Clutch Operating Bolt -9/16" diameter -6-7/16" overall length -Replaces Part Numbers: A4354R - -(3) Clutch Dog -3 required per tractor -Replaces Part Numbers: C74R - -(3) Clutch Dog Pin -0.495" diameter -2.500" usable length -3 used per tractor -Replaces Part Numbers: D355R - -(1) Facing Clutch Pulley -10" disc outside diameter -0.393" thick -Replaces Part Numbers: AA5082R, AA6129 - -(2) Facing Clutch Disc -10" outside diameter -6-3/4" inside diameter -0.150" thick -The side with the grooves faces the driving disc -1-5/8" lining width -Replaces Part Numbers: R90215, C614R - -(1) Brake Pad Pulley -Non-asbestos lining with countersunk brass rivets -Replaces Part Numbers: AB4748R, AF4748R, RE29790 - -(3) Clutch Disc Adjusting Spring -1.915" long -0.740" outside diameter -0.500" inside diameter -0.120" wire thickness -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc -3 springs used per tractor -Replaces Part Numbers: A352R - -(3) Clutch Adjusting Nut -9/16" - 18 NF -Grade 5 -Slotted hex nut, 9/16" -3 used per tractor; sold individually -Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 - -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer -0.572" inside diameter -0.937" outside diameter -0.035" thick -Spring steel -Torque initially to 15 FT pounds, then adjust as needed -Use to smooth out the hand clutch engagement -3 used per tractor -Replaces part Numbers: JDS1626Made to Fits John Deere:
Models: 60, 620, 630 Replaces Part Number(s): A4354R, C74R, D355R, AA5082R, AA6129, R90215, C614R, AB4748R, AF4748R, RE29790, A352R, JDS1626

Reference numbers: AF4748R, AD2850R, D2789R, A4354R, C74R, D355R, AA5082R, AA6129, R90215, C614R, AB4748R, RE29790, A352R, JDS1626, 14H862, R20228

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 60
  • John Deere 620
  • John Deere 630
Application notes
  • One New Aftermarket Complete Overhaul T-Bolt & Clutch Kit
  • Tech Info: -(3) Clutch Operating Bolt -9/16" diameter -6-7/16" overall length -Replaces Part Numbers: A4354R - -(3) Clutch Dog -3 required per tractor -Replaces Part Numbers: C74R - -(3) Clutch Dog Pin -0.495" diameter -2.500" usable length -3 used per tractor -Replaces Part Numbers: D355R - -(1) Facing Clutch Pulley -10" disc outside diameter -0.393" thick -Replaces Part Numbers: AA5082R, AA6129 - -(2) Facing Clutch Disc -10" outside diameter -6-3/4" inside diameter -0.150" thick -The side with the grooves faces the driving disc -1-5/8" lining width -Replaces Part Numbers: R90215, C614R - -(1) Brake Pad Pulley -Non-asbestos lining with countersunk brass rivets -Replaces Part Numbers: AB4748R, AF4748R, RE29790 - -(3) Clutch Disc Adjusting Spring -1.915" long -0.740" outside diameter -0.500" inside diameter -0.120" wire thickness -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc -3 springs used per tractor -Replaces Part Numbers: A352R - -(3) Clutch Adjusting Nut -9/16" - 18 NF -Grade 5 -Slotted hex nut, 9/16" -3 used per tractor; sold individually -Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 - -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer -0.572" inside diameter -0.937" outside diameter -0.035" thick -Spring steel -Torque initially to 15 FT pounds, then adjust as needed -Use to smooth out the hand clutch engagement -3 used per tractor -Replaces part Numbers: JDS1626Made to Fits John Deere:
