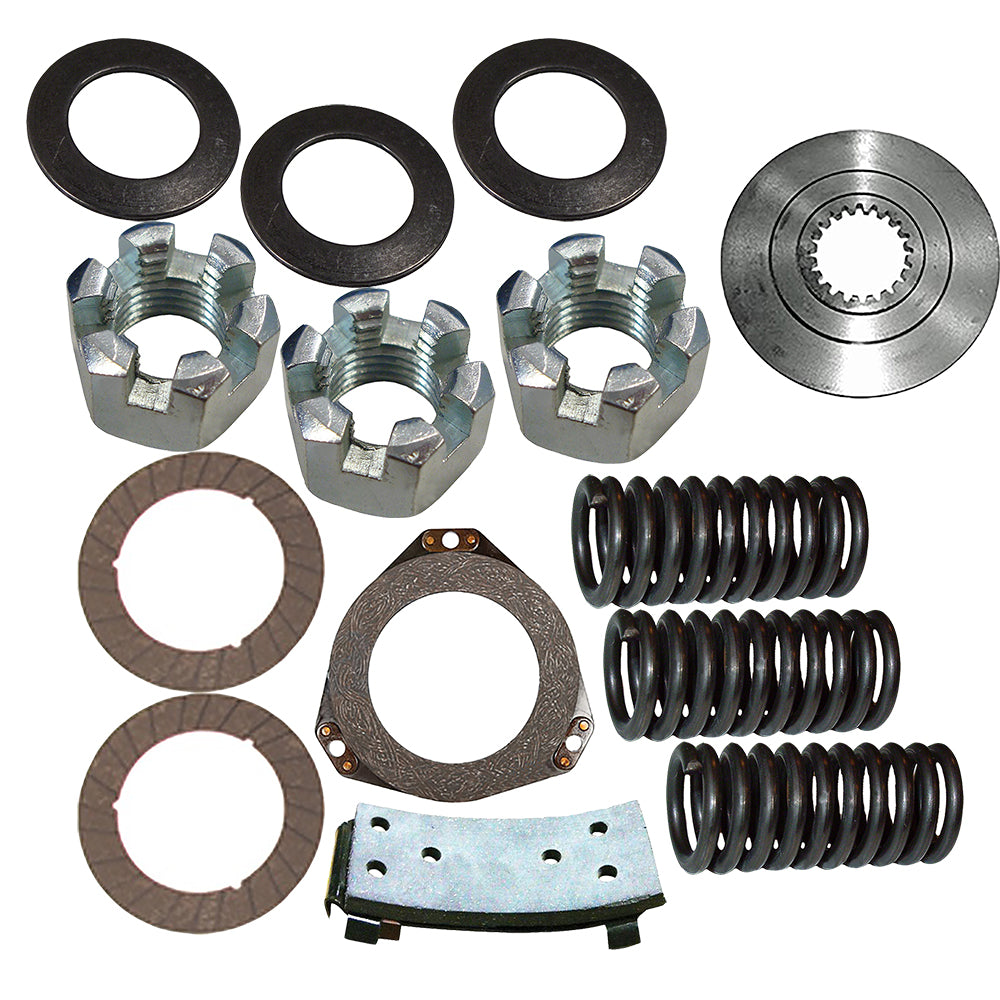

AA5082R Clutch Slider Disc & Clutch Kit
AA5082R Clutch Slider Disc & Clutch Kit – additional image 2AA5082R Clutch Slider Disc & Clutch Kit – additional image 3AA5082R Clutch Slider Disc & Clutch Kit – additional image 4AA5082R Clutch Slider Disc & Clutch Kit – additional image 5AA5082R Clutch Slider Disc & Clutch Kit – additional image 6AA5082R Clutch Slider Disc & Clutch Kit – additional image 7AA5082R Clutch Slider Disc & Clutch Kit – additional image 8

NC-118115 · Kits, Tools & Shop Items

AA5082R Clutch Slider Disc & Clutch Kit

CAD 476.18

Availability to confirm

Clutch Slider Disc & Clutch Kit – reference AA5082R. Catalogue-listed applications: John Deere, Long 60, 620, 630. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-118115
Reference numbers
AA5082R, AF4748R, AD2850R, D2789R, AA6129, R90215, C614R, AB4748R, RE29790, A352R, 14H862, R20228, JDS1626, AF1247R
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Clutch Slider Disc & Clutch Kit Fits John Deere Replaces 14H862.

Configuration: Clutch Slider Disc & Clutch Kit

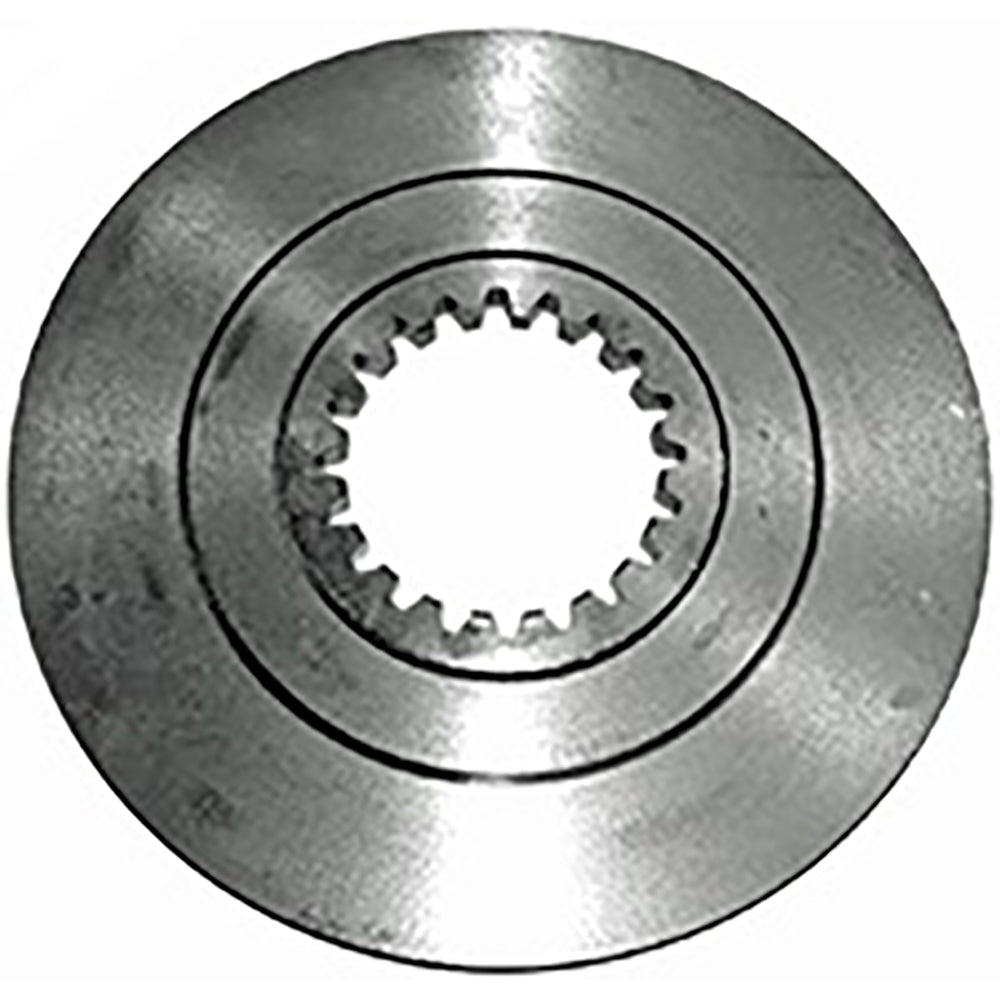

Tech Info: -(1) Facing Clutch Pulley -10" disc outside diameter -0.393" thick -Replaces Part Numbers: AA5082R, AA6129 - -(2) Facing Clutch Disc -10" outside diameter -6-3/4" inside diameter -0.150" thick -The side with the grooves faces the driving disc -1-5/8" lining width -Replaces Part Numbers: R90215, C614R - -(1) Brake Pad Pulley -Non-asbestos lining with countersunk brass rivets -Replaces Part Numbers: AB4748R, AF4748R, RE29790 - -(3) Clutch Disc Adjusting Spring -1.915" long -0.740" outside diameter -0.500" inside diameter -0.120" wire thickness -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc -3 springs used per tractor -Replaces Part Numbers: A352R - -(3) Clutch Adjusting Nut -9/16" - 18 NF -Grade 5 -Slotted hex nut, 9/16" -3 used per tractor -Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 - -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer -0.572" inside diameter -0.937" outside diameter -0.035" thick -Spring steel -Torque initially to 15 FT pounds, then adjust as needed -Use to smooth out the hand clutch engagement -3 used per tractor -Replaces part Numbers: JDS1626 - -(1) Clutch Slider Disc -9.910" outside diameter -0.247" thick -20 splines -3-5/8" spline inside diameter -Replaces Part Numbers: AF1247RMade to Fits John Deere: Tractor
Models: 60, 620, 630 Model Breaks: AO, AR SN: 273080 and up. 1 used per tractorD SN: 109944 and up. 1 used per tractor G 1 used per tractorA SN: 648000 and up. 1 used per tractor 60 1 used per tractor 620 1 used per tractor 630 1 used per tractor 70 2 used per tractor 720 2 used per tractor 730 2 used per tractor Replaces Part Number(s): AA5082R, AA6129, R90215, C614R, AB4748R, AF4748R, RE29790, A352R, 14H862, R20228, D2789R, AD2850R, JDS1626, AF1247R

Reference numbers: AA5082R, AF4748R, AD2850R, D2789R, AA6129, R90215, C614R, AB4748R, RE29790, A352R, 14H862, R20228, JDS1626, AF1247R

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 60
  • John Deere 620
  • John Deere 630
Application notes
  • One New Aftermarket Clutch Slider Disc & Clutch Kit
  • Tech Info: -(1) Facing Clutch Pulley -10" disc outside diameter -0.393" thick -Replaces Part Numbers: AA5082R, AA6129 - -(2) Facing Clutch Disc -10" outside diameter -6-3/4" inside diameter -0.150" thick -The side with the grooves faces the driving disc -1-5/8" lining width -Replaces Part Numbers: R90215, C614R - -(1) Brake Pad Pulley -Non-asbestos lining with countersunk brass rivets -Replaces Part Numbers: AB4748R, AF4748R, RE29790 - -(3) Clutch Disc Adjusting Spring -1.915" long -0.740" outside diameter -0.500" inside diameter -0.120" wire thickness -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc -3 springs used per tractor -Replaces Part Numbers: A352R - -(3) Clutch Adjusting Nut -9/16" - 18 NF -Grade 5 -Slotted hex nut, 9/16" -3 used per tractor -Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 - -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer -0.572" inside diameter -0.937" outside diameter -0.035" thick -Spring steel -Torque initially to 15 FT pounds, then adjust as needed -Use to smooth out the hand clutch engagement -3 used per tractor -Replaces part Numbers: JDS1626 - -(1) Clutch Slider Disc -9.910" outside diameter -0.247" thick -20 splines -3-5/8" spline inside diameter -Replaces Part Numbers: AF1247RMade to Fits John Deere: Tractor
