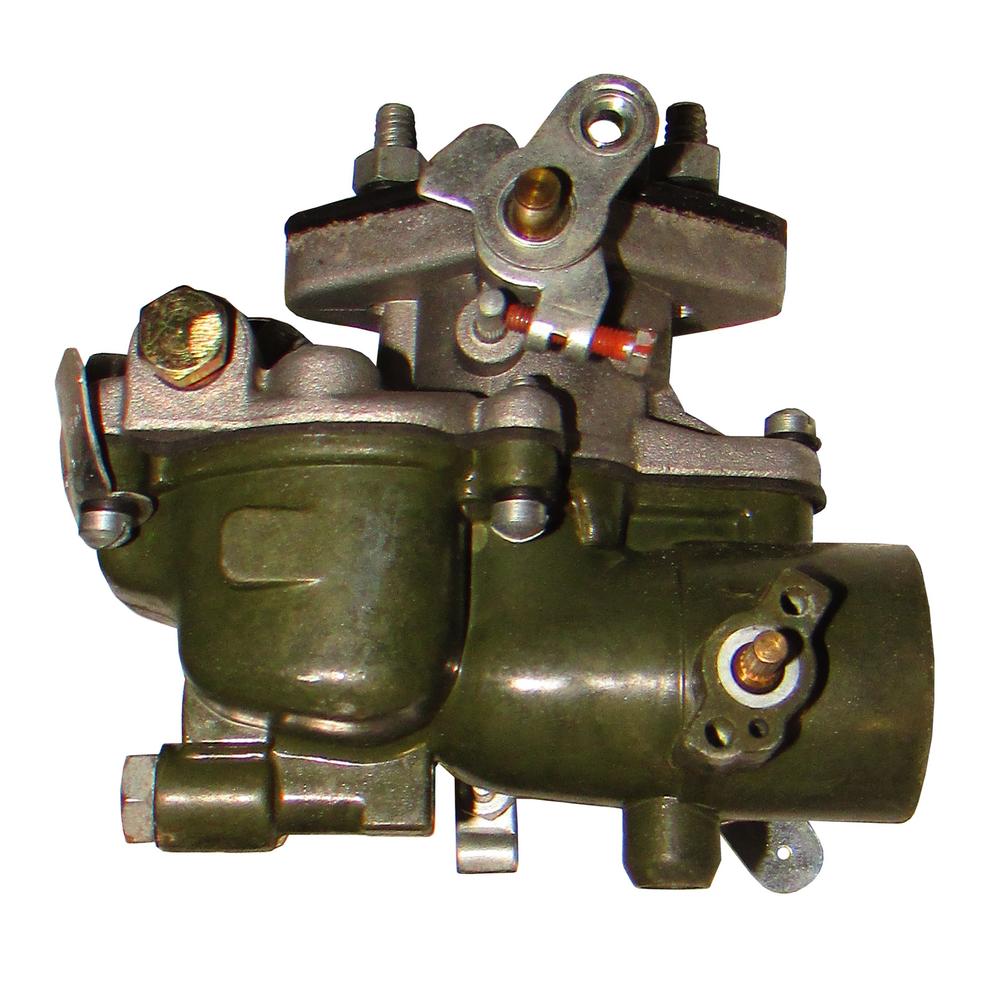

70949C92 Carburetor – Fits International Harvester
70949C92 Carburetor – Fits International Harvester – additional image 270949C92 Carburetor – Fits International Harvester – additional image 3

NC-117808 · Fuel System Parts & Components

70949C92 Carburetor – Fits International Harvester

CAD 517.05

Availability to confirm

Carburetor – reference 70949C92. Catalogue-listed applications: International Harvester 154 (with Engine S/N 312390 & Up), 184, 154 (with Engine S/N 312390 & Up). View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-117808
Reference numbers
70949C92, 71523C93
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Carburetor Fits FARMALL Fits Cub Fits Case IH Tractor 185 154 184 Replace carb.

Configuration: Zenith-Style Carburetor Fits IH Fits FARMALL Tractor models: Fits Cub, 154 (with Engine S/N 312390 & Up), 184, 185. Replacement for Zenith style Carburetor 70949C92 71523C93 70949C91 Replace Fits IH Fits FARMALL Fits Cub Tractor 154 184 185 WITH ENGINE SERIAL NUMBER 312390 and up Replace for Mfg #`s 13781, 13794 On older Fits Cub tractors Choke air horn (air inlet): 1-5/8" OD Fuel inlet: 1/8" NPT NOTE: On older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly. This is a New Zenith replacement carburetor. The throttle bore measures 1-1/64". The carb mounting studs measure 1-13/16" center to center. The choke air horn (air inlet) measures 1-5/8" OD. The fuel inlet measures 1/8" NPT. The carb mounting flange gasket is included. FITS THE LISTED ZENITH STYLE CARB ONLY. Replaces Part Number(s): 70949C92, 71523C93,

Reference numbers: 70949C92, 71523C93

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • International Harvester 154 (with Engine S/N 312390 & Up)
  • International Harvester 184
  • International Harvester 154 (with Engine S/N 312390 & Up)
Application notes
  • One New Aftermarket Replacement Zenith-Style Carburetor Fits IH Fits FARMALL Tractor models: Fits Cub, 154 (with Engine S/N 312390 & Up), 184, 185. Replacement for Zenith style Carburetor 70949C92 71523C93 70949C91 Replace Fits IH Fits FARMALL Fits Cub Tractor 154 184 185 WITH ENGINE SERIAL NUMBER 312390 and up Replace for Mfg #`s 13781, 13794 On older Fits Cub tractors Choke air horn (air inlet): 1-5/8" OD Fuel inlet: 1/8" NPT NOTE: On older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly. This is a New Zenith replacement carburetor. The throttle bore measures 1-1/64". The carb mounting studs measure 1-13/16" center to center. The choke air horn (air inlet) measures 1-5/8" OD. The fuel inlet measures 1/8" NPT. The carb mounting flange gasket is included. FITS THE LISTED ZENITH STYLE CARB ONLY. Replaces Part Number(s): 70949C92, 71523C93,
