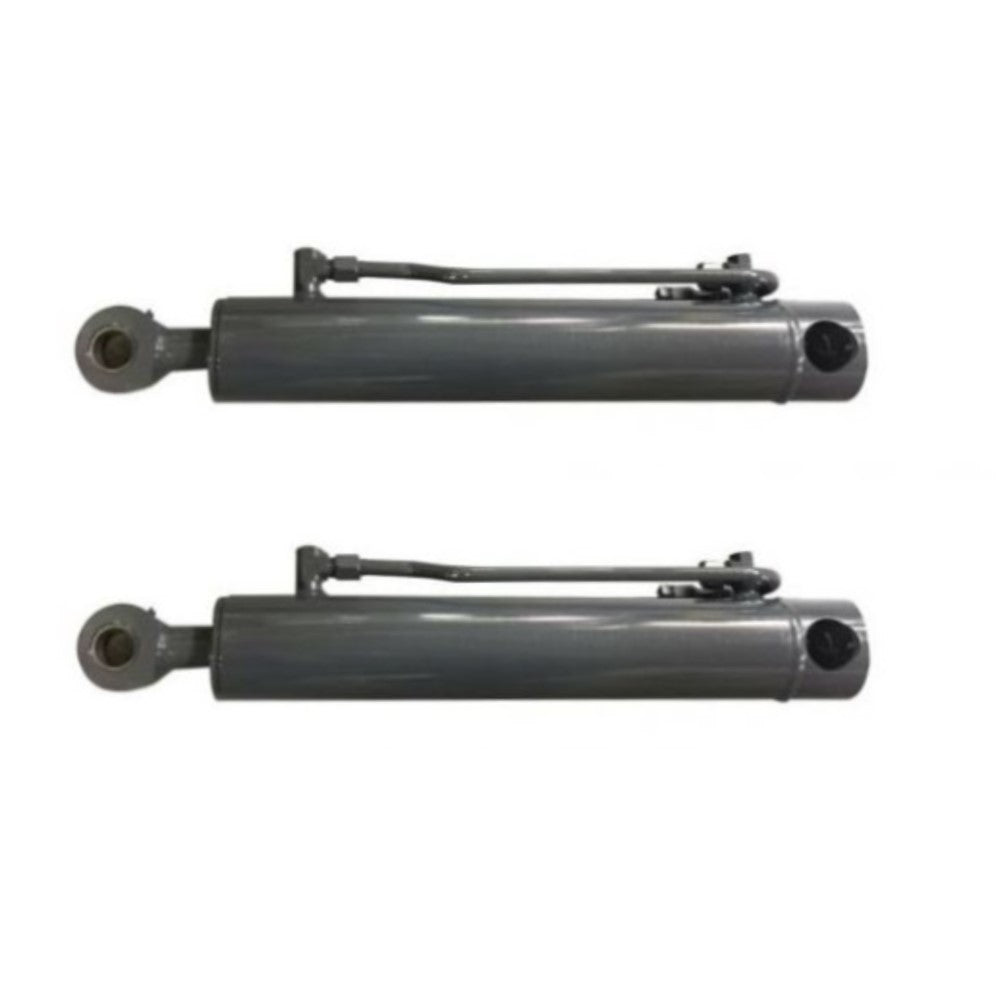

7208419 Qty 2: Cylinder – Fits Bobcat

NC-016182 · Cylinders

7208419 Qty 2: Cylinder – Fits Bobcat

CAD 1443.27

Availability to confirm

Qty 2: Cylinder – reference 7208419. Catalogue-listed applications: Bobcat A300, S220, S250, S300, S330, T250, T300. Rod Diameter: 38.1 mm; Bore Diameter: 76.2 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-016182
Reference numbers
7208419
Listed package quantity
2
Rod Diameter
38.1 mm
Bore Diameter
76.2 mm
Stroke
381 mm
Product information and configuration
Quantity indicated in catalogue: 2

Replacement part: Qty 2: Cylinder Fits Bobcat A300 S220 S250 S300 S330 T250 T300 T320.

Configuration: Qty 2: Cylinder
Specifications:
-Rod: 1.5"
-Bore: 3.0"
-Stroke: 15.0"
-
-Seal rated for 250°F and up to 7250 psi; resulting in extended seal life.
-Cast iron gland with buttress threads versus aluminum OEM gland means less galled or damaged threads.
-Hardened chrome rod which is less susceptible to bending.
-Cast iron piston
-Cast iron gland with buttress threads
-Pressure rated 3000-3500 psi
-SAE and JIC flared ports
-Grease ports on both pin eyes
Fits Bobcat:
Stand-on Mower Models: A300
Replaces Part Number(s): 7208419
Skid Steer Loader Models: S220, S250, S300, S330
Track Loader Models: T250, T300, T320

Reference numbers: 7208419

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Bobcat A300
  • Bobcat S220
  • Bobcat S250
  • Bobcat S300
  • Bobcat S330
  • Bobcat T250
  • Bobcat T300
  • Bobcat T320
Application notes
  • Aftermarket Qty 2: Cylinder
  • -Cast iron gland with buttress threads versus aluminum OEM gland means less galled or damaged threads.
  • -Cast iron gland with buttress threads
