249022A3 Brake Assembly – Fits Case / International Harvester
249022A3 Brake Assembly – Fits Case / International Harvester – additional image 2249022A3 Brake Assembly – Fits Case / International Harvester – additional image 3249022A3 Brake Assembly – Fits Case / International Harvester – additional image 4249022A3 Brake Assembly – Fits Case / International Harvester – additional image 5

NC-015520 · Other Brake Components

249022A3 Brake Assembly – Fits Case / International Harvester

CAD 448.39

Availability to confirm

Brake Assembly – reference 249022A3. Catalogue-listed applications: Case / International Harvester 430, 470, 480, 480C, 530, 570, 580. Height: 63.5 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-015520
Reference numbers
249022A3
Listed package quantity
1
Height
63.5 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Brake Assembly Fits Case 570 480 580 480C 470 530 430 249022A3.

Configuration: Pre-Assembled Brake Pack Assembly
Fits Case/International Harvester Tractor:
430, 470, 480, 480C, 530, 570, 580
Specifications:
10.5" diameter
2.5" height

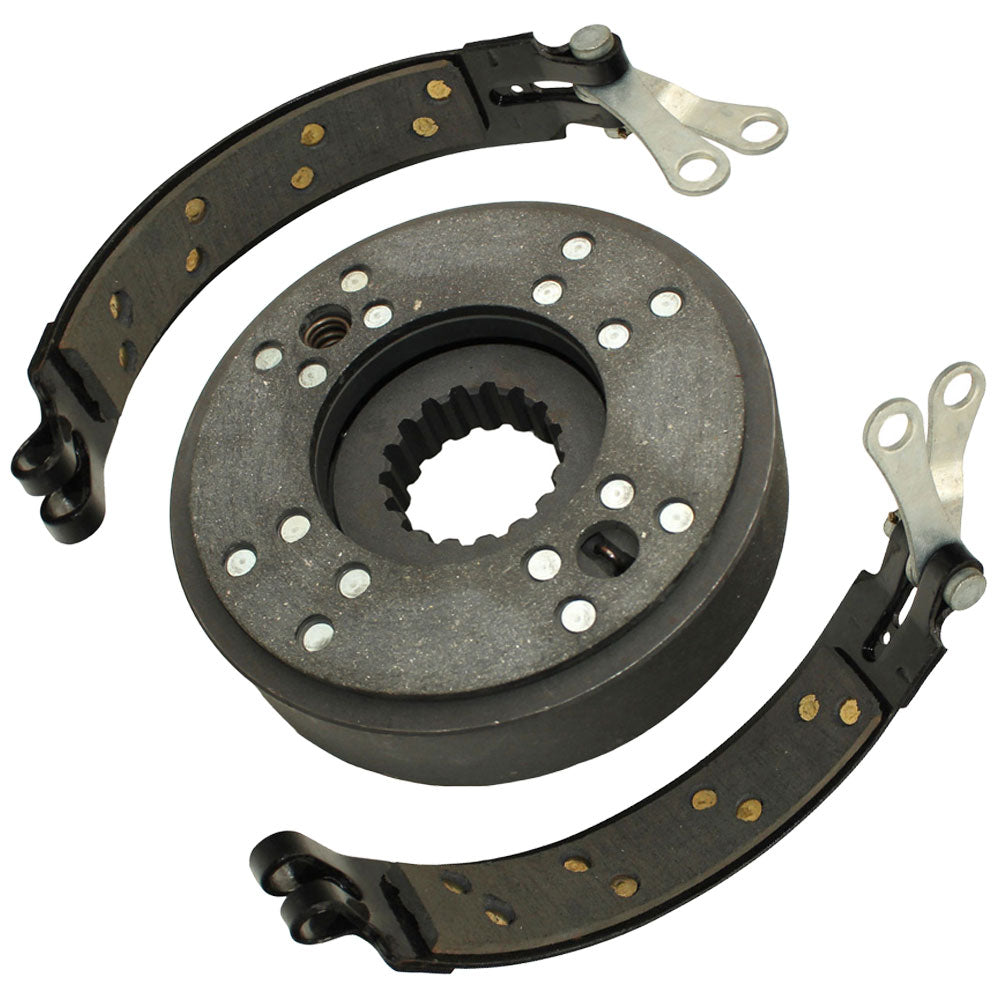

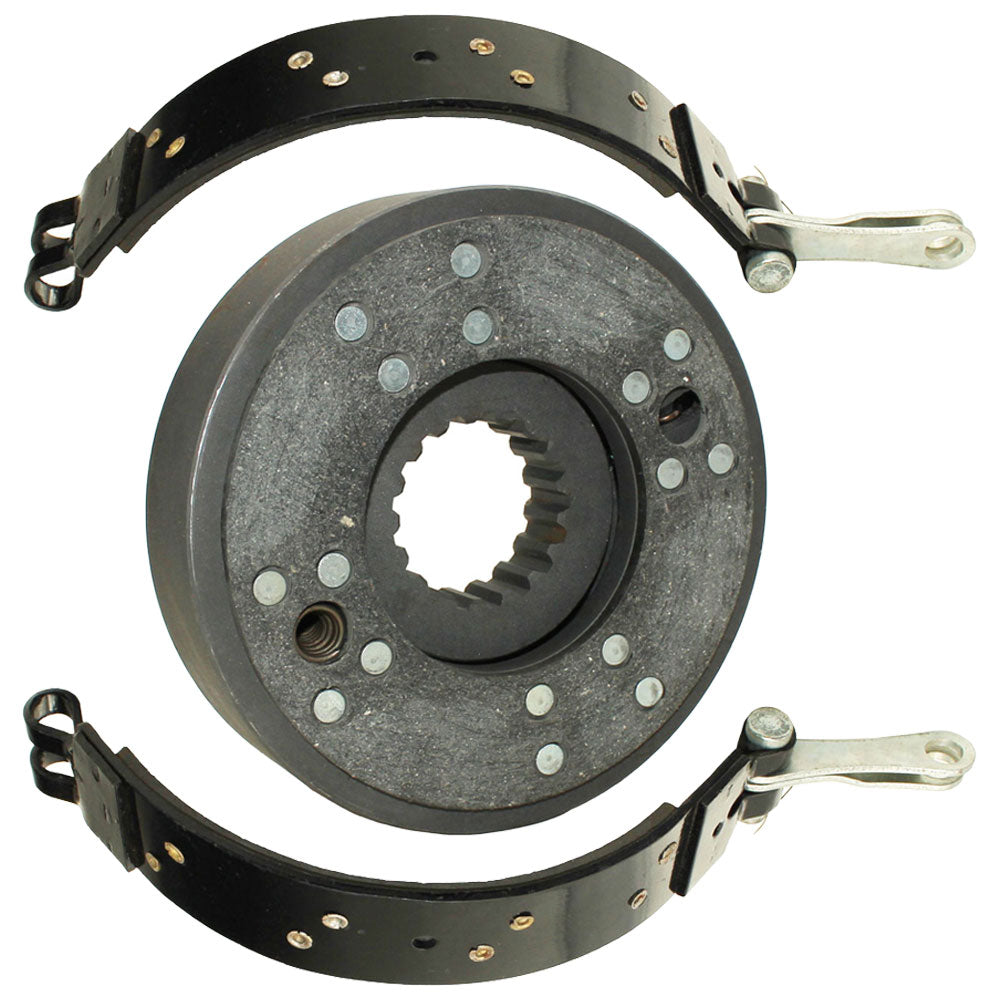

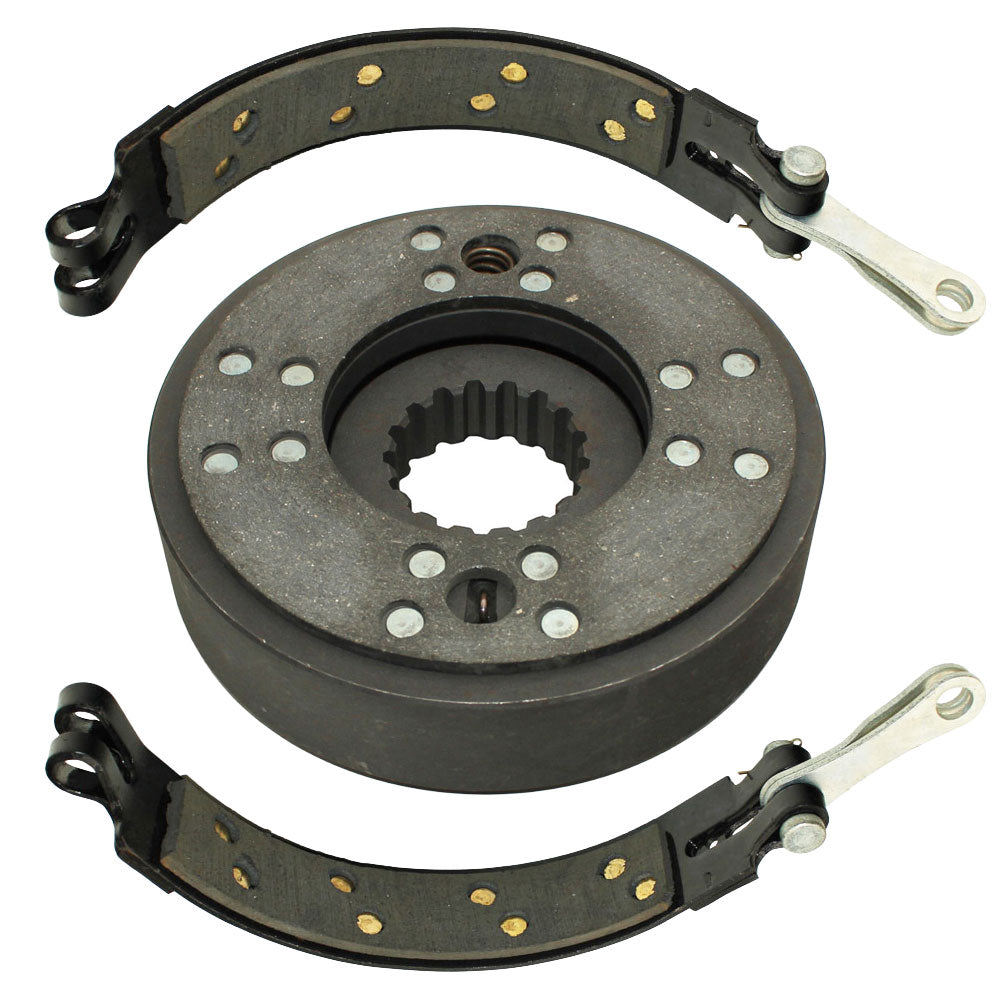

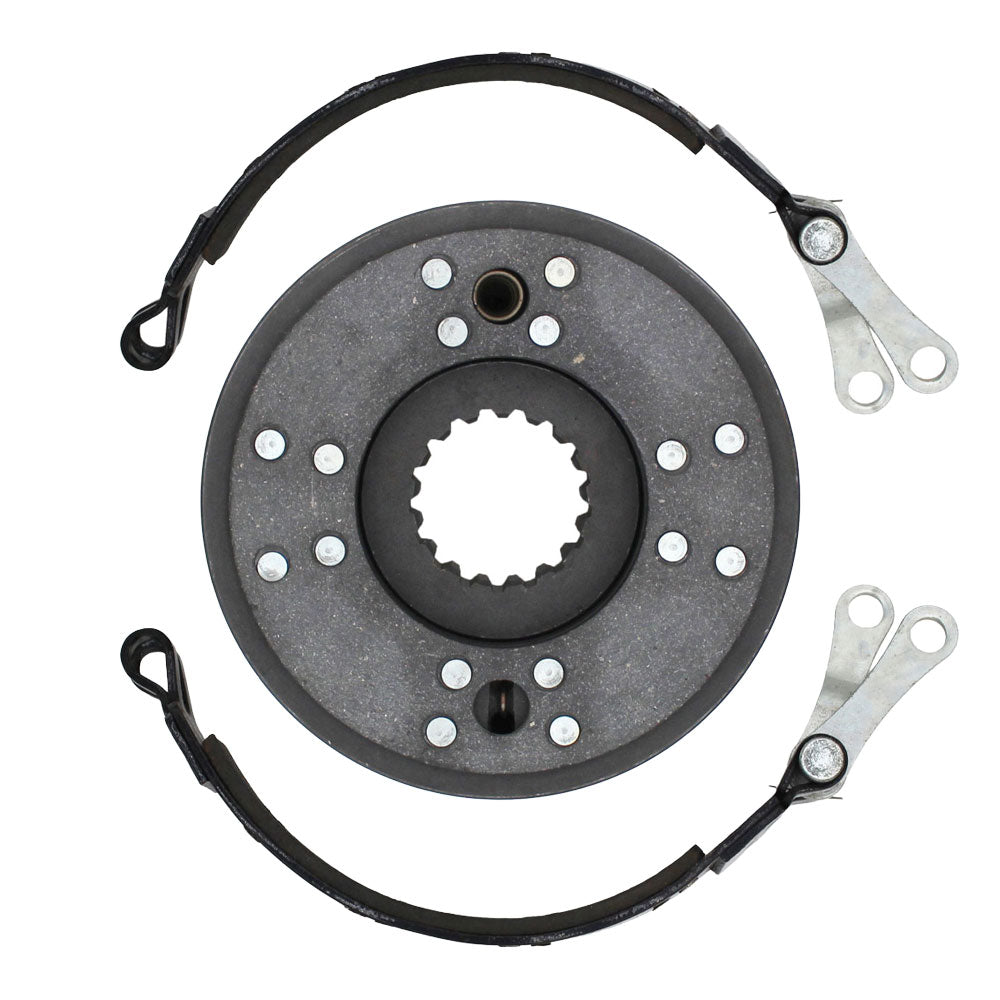

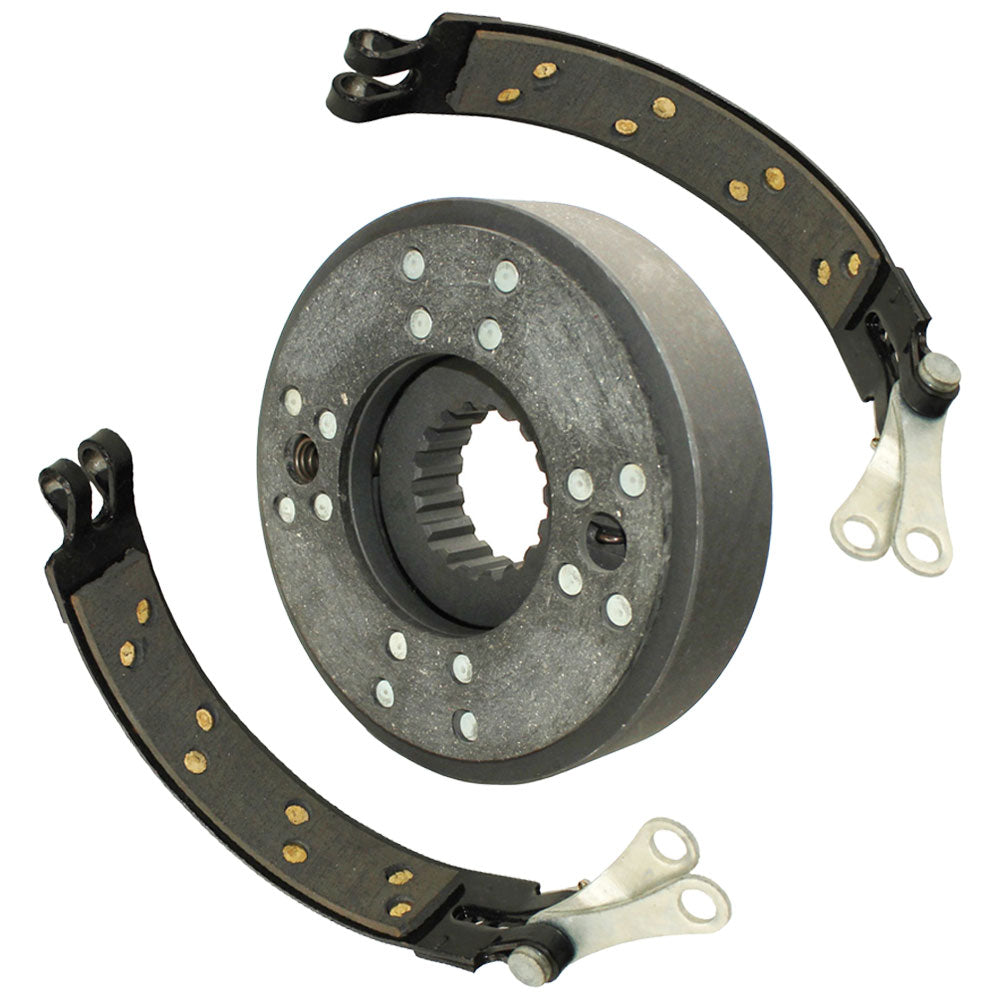

Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.
Instillation: When installing brake pack be sure housing is in a vertical (stand up) position. Install brake bands first. This allows brake bands to center themselves upright and brake pack to slide into position.
Replaces Part Number(s): 249022A3

Reference numbers: 249022A3

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case / International Harvester 430
  • Case / International Harvester 470
  • Case / International Harvester 480
  • Case / International Harvester 480C
  • Case / International Harvester 530
  • Case / International Harvester 570
  • Case / International Harvester 580
Application notes
  • One New Aftermarket Replacement Pre-Assembled Brake Pack Assembly
  • Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.
