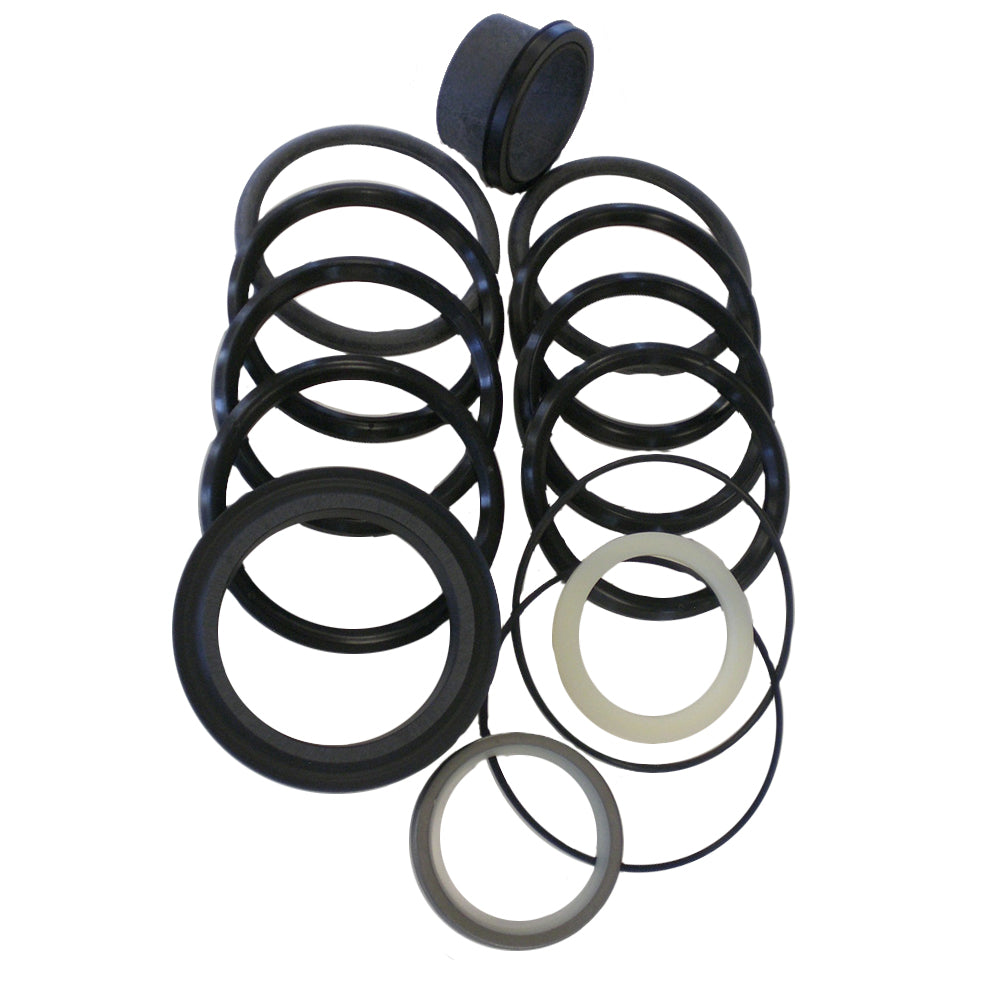

G105513 Tilt Dipper Boom Stabilizer Arm Cylinder Seal Repair Kit – Fits Case

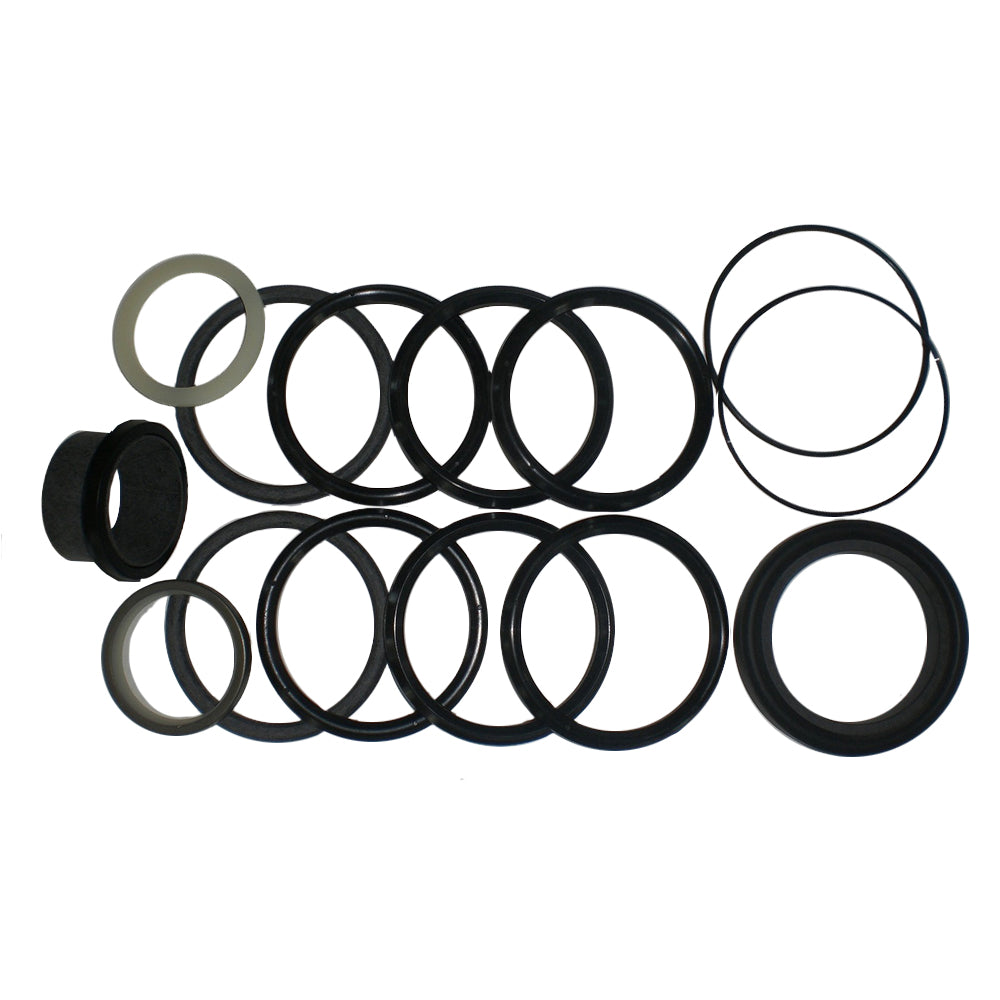

G105513 Tilt Dipper Boom Stabilizer Arm Cylinder Seal Repair Kit – Fits Case – additional image 2

NC-009068 · Repair/Seal Kits

G105513 Tilt Dipper Boom Stabilizer Arm Cylinder Seal Repair Kit – Fits Case

CAD 205.62

Availability to confirm

Tilt Dipper Boom Stabilizer Arm Cylinder Seal Repair Kit – reference G105513. Catalogue-listed applications: Case 680G, 680H, 35, 36, 34, W24B, W24C. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-009068
Reference numbers
G105513
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Tilt Dipper Boom Stabilizer Arm Cylinder Seal Repair Kit Fits Case 1150 W24.

Configuration: Fits Case Backhoe / Wheel Loader Cylinder 2pc Seal Kit Fits Models:
Backhoe Dipper: 680E, 680G, 680H
Backhoe Boom: 780
Backhoe Stabilizer: 780
Backhoe Dipper: 850 with Backhoe Models 34, 35, 36, 1150 with Backhoe Models 32, 34, 36
Loader Tilt: W24, W24B, W24C
Rod: 2 1/2", Bore: 4 1/2"
Replaces Part Number: G105513

Reference numbers: G105513

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 680G
  • Case 680H
  • Case 35
  • Case 36
  • Case 34
  • Case W24B
  • Case W24C
Application notes
  • Backhoe Dipper: 850 with Backhoe Models 34, 35, 36, 1150 with Backhoe Models 32, 34, 36
